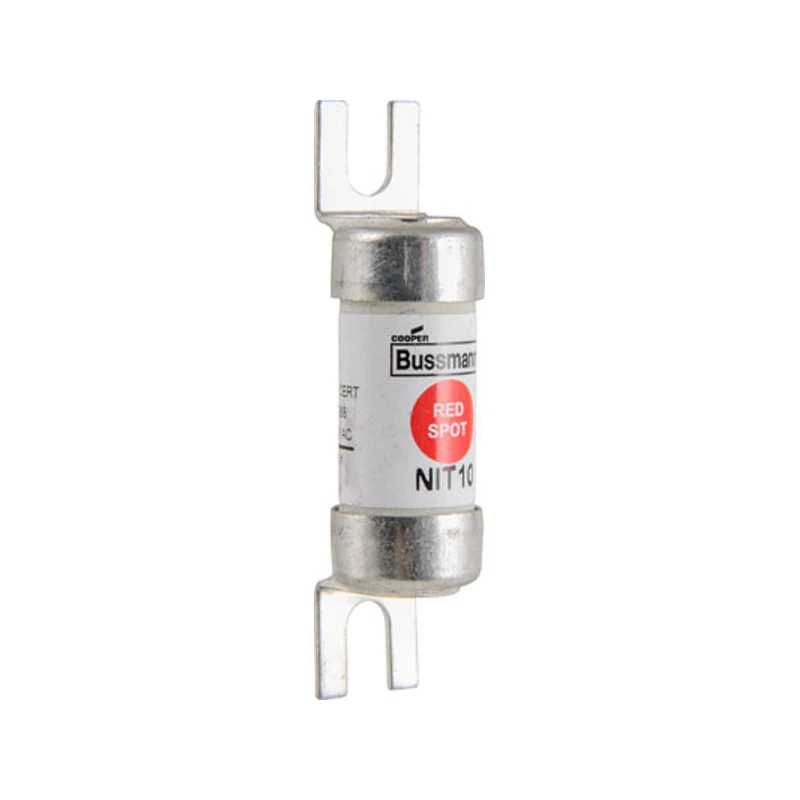

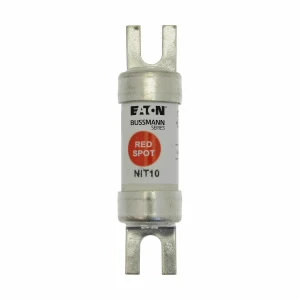

Fuse Link HRC Offset Bolted Tags BS88 10A 550V AC
Fuse Link HRC Offset Bolted Tags BS88 10A 550V AC
Fuse Link HRC Offset Bolted Tags BS88 10A 550V AC - Image 2
Fuse Link HRC Offset Bolted Tags BS88 10A 550V AC - Image 3

Fuse Link HRC Offset Bolted Tags BS88 10A 550V AC

£4.40 Incl. VAT

NIT Red Spot industrial offset bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution, cable protection. · · · BS reference: A1 · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gM characteristics for motor protection applications · · Power loss values within the limits of IEC 60269 · · Compatible with Camaster 32A compact CM32FC and Red Spot 20A RS20 · · Pre-arching: 170 · · Total at rated voltage: 1,000 · · 44mm fixing centre

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NIT10 Categories: , , Brand: Part Number: 2500522209

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse construction type according to IEC 60269 A1 Mounting holes M4 Fuse system according to IEC 60269 Fuse system E Current type AC/DC Breaking capacity 80 kA Utilization category gG (cable protection/equipment protection) Rated current 10 A Centre-to-centre distance of connections 44.5 mm Power loss at rated current 2.1 W Rated voltage DC 250 V Rated voltage AC 550 V · Technical Data Sheet – Click to Download
