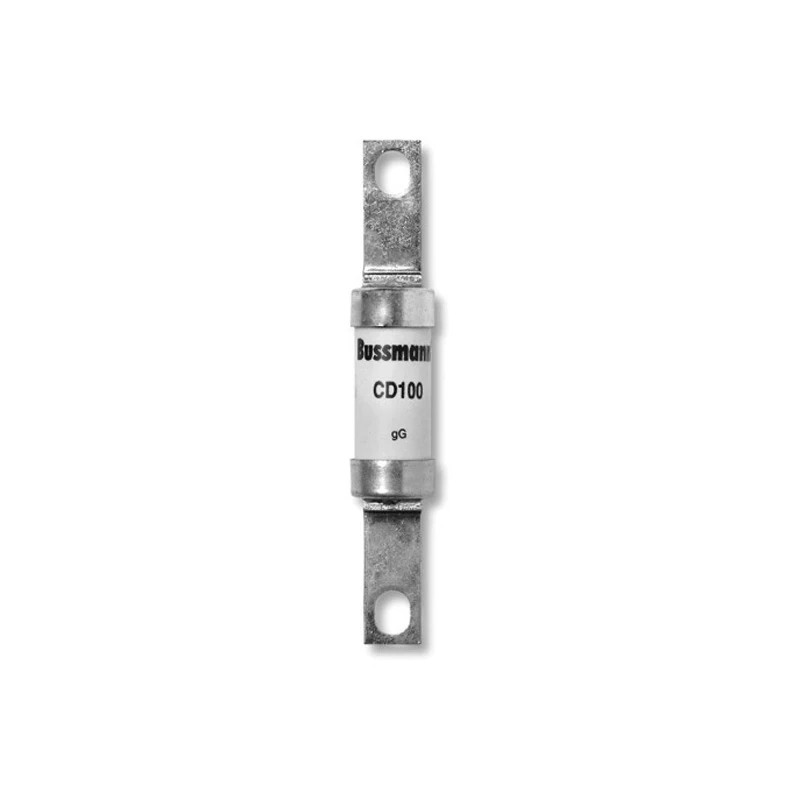

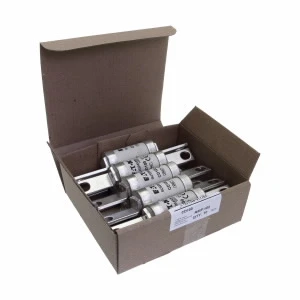

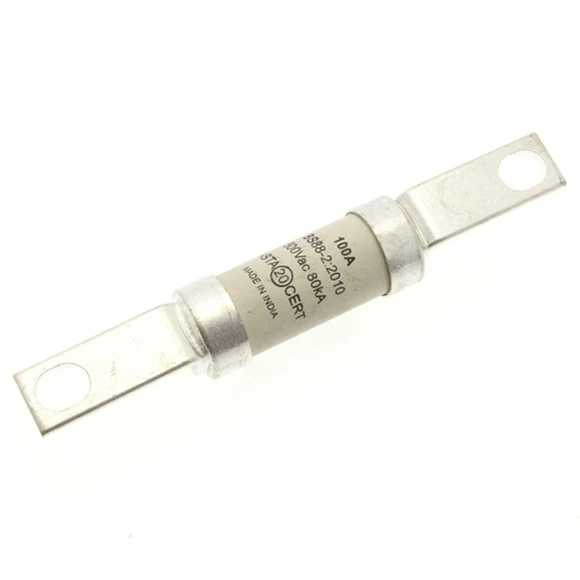

Eaton Fuse Link Industrial HRC Centre Bolted Tags BS88 100A
Industrial centre tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: B1 · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gG characteristics for cable protection · · Power loss values within the limits of IEC 60269 · · Compatible with Red Spot fuse holder 200A RS200 · · Pre-arching: 25,000 · · Total at 415V: 76,500 · · Watts loss: 8.5
Description
Technical Specifications Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Mounting holes M8 Fuse construction type according to IEC 60269 B1 Current type AC Breaking capacity 80 kA Rated current 100 A Centre-to-centre distance of connections 111 mm Rated voltage AC 500 V Power loss at rated current 8.5 W · Technical Data Sheet – Click to Download
