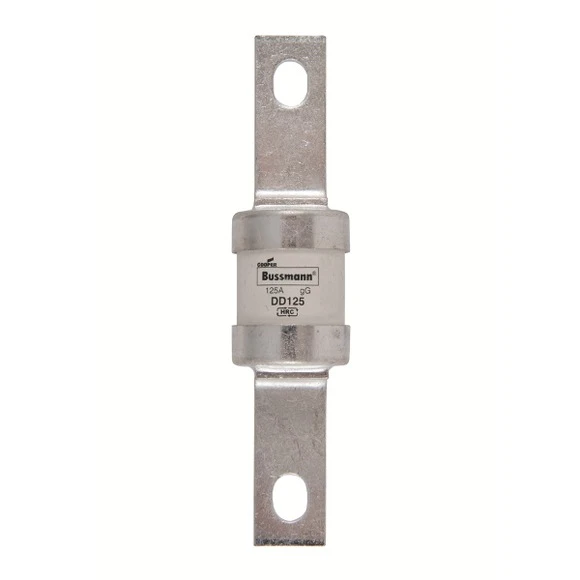

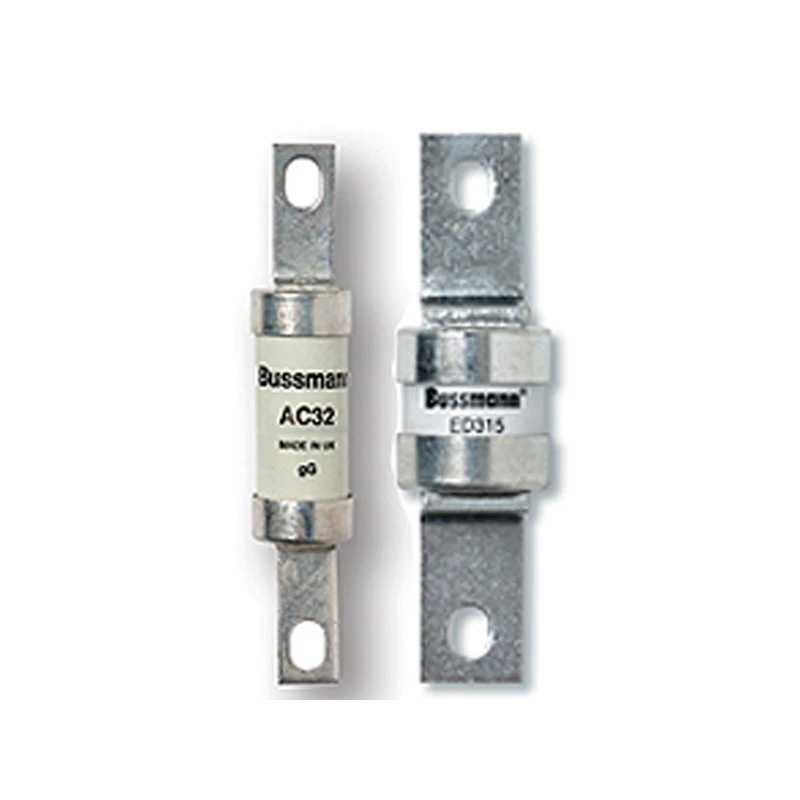

Fuse Link Industrial HRC Centre Bolted Tags BS88 125A
£20.82 Incl. VAT
Industrial centre bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: B2 · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gG characteristics for cable protection · · Power loss values within the limits of IEC 60269 · · Compatible with Red Spot fuse holder 200A RS200 · · Pre-arching: 29.5 · · Total at 415V: 71 · · Watts loss: 11
47 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Fuse construction type according to IEC 60269 B2 Mounting holes M8 Current type AC Centre-to-centre distance of connections 111 mm Rated voltage AC 415 V Breaking capacity 80 kA Rated current 125 A Power loss at rated current 11 W · Technical Data Sheet – Click to Download
