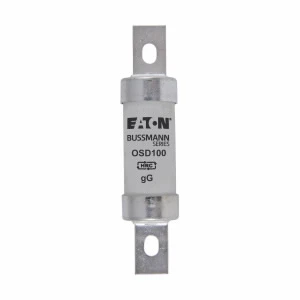

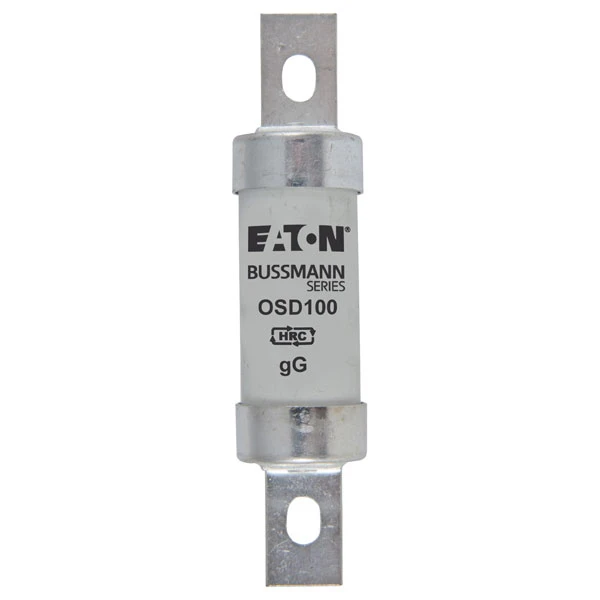

Eaton Fuse Link Industrial HRC Offset Bolted Tags BS88 100A
Fuse, Fuse-link, low voltage, 100 A, AC 500 V, BS88, 21 x 95 mm, gL/gG, BS, offset bolted tags, general industrial applications, BS88, IEC 60269, Breaking Capacity 80 kA, Optional accessories fuse-holder CM100F · · · gG characteristics for cable protection · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values well within the limits of IEC 60269 · · Compatible with Camaster 100A CM100F · · Pre-arching: 25,000 · · Total at 415V AC: 76,500 · · Watts loss: 8.5 · · Watts loss: 8.5
Description
Technical Specifications Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Utilization category gG (cable protection/equipment protection) Mounting holes M5 Current type AC Breaking capacity 80 kA Rated current 100 A Centre-to-centre distance of connections 73.5 mm Rated voltage AC 500 V Power loss at rated current 8.5 W · Technical Data Sheet – Click to Download
