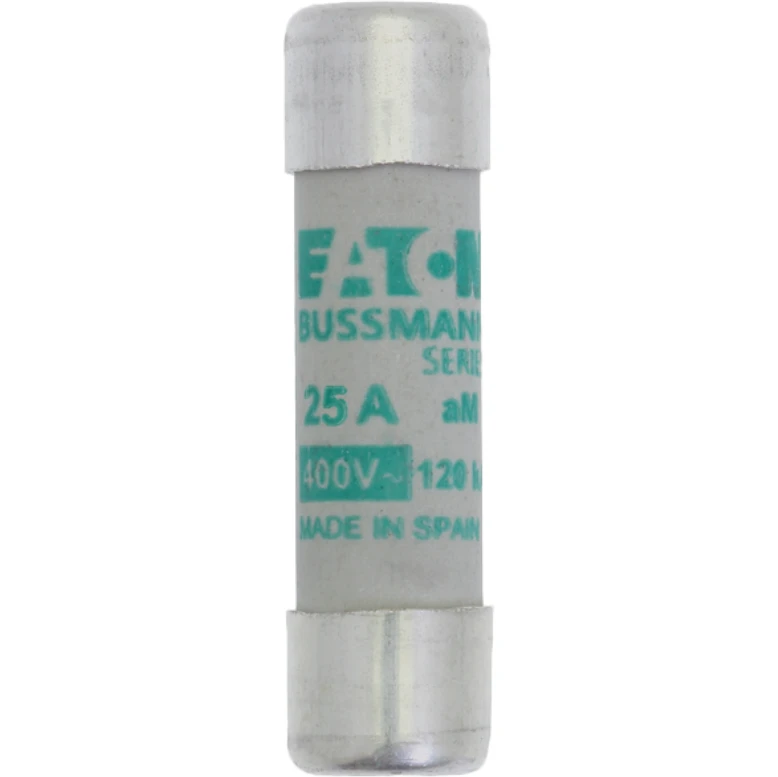

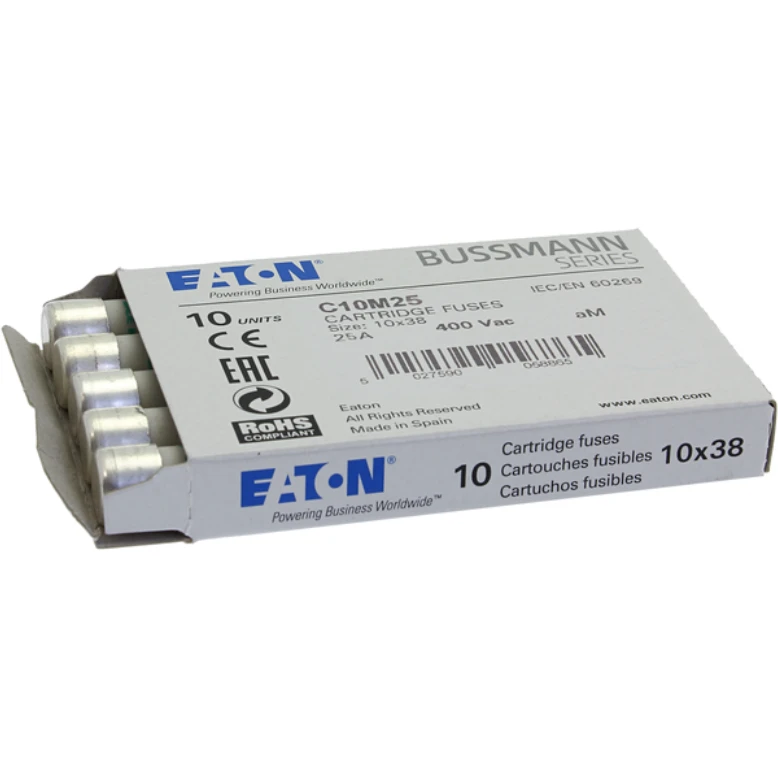

Fuse-link, low voltage, 25 A, AC 400 V, 120 kA, 10 x 38 mm, aM, IEC
Fuse-link, low voltage, 25 A, AC 400 V, 120 kA, 10 x 38 mm, aM, IEC
Fuse-link, low voltage, 25 A, AC 400 V, 120 kA, 10 x 38 mm, aM, IEC - Image 2
Fuse-link, low voltage, 25 A, AC 400 V, 120 kA, 10 x 38 mm, aM, IEC - Image 3
Fuse-link, low voltage, 25 A, AC 400 V, 120 kA, 10 x 38 mm, aM, IEC - Image 4

Fuse-link, low voltage, 25 A, AC 400 V, 120 kA, 10 x 38 mm, aM, IEC

£1.18 Incl. VAT

Fuse, fuse-link, low voltage, 25 A, AC 400 V, 10 x 38 mm, aM, IEC, cylindrical, motor protection, for industrial applications, IEC 60269-2 · · · Full range of current ratings · · Striker and non strikers versions available · · Compatible modular fuse holders · · Low temperature rise · · Tool free installation · · IP65

51 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C10M25 Categories: , , Brand: Part Number: 2500045425

Description

Technical Specifications  Technical Specifications Cylindrical fuse Utilization category aM (switchgear protection) Model Ceramic fuse Size 10×38 mm Voltage type AC Rated current 25 A Rated voltage 400 V Power loss at rated current 1.4 W Breaking capacity 120 kA Rated operating frequency 45 – 62 Hz · Technical Data Sheet – Click to Download
