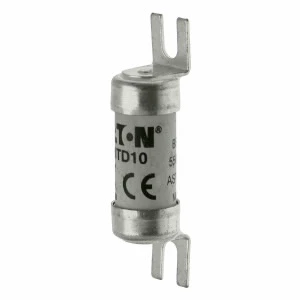

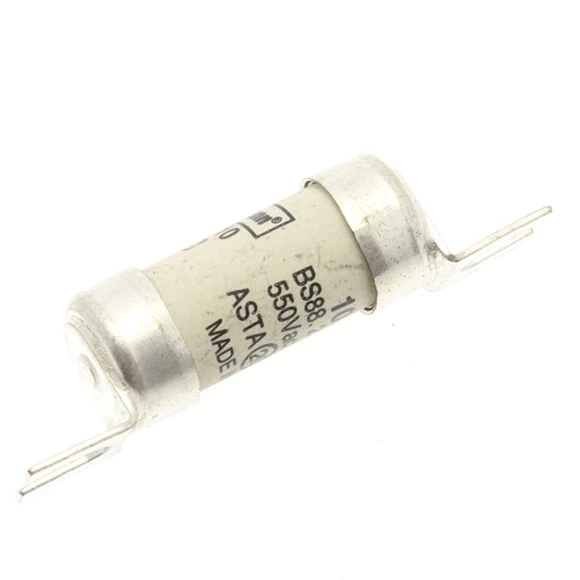

Eaton Fuse-link LV 10 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS
Eaton Fuse-link LV 10 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS
Eaton Fuse-link LV 10 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 2
Eaton Fuse-link LV 10 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 3
Eaton Fuse-link LV 10 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 4

Eaton Fuse-link LV 10 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS

£2.50 Incl. VAT

Fuse, Fuse-link, low voltage, 10 A, AC 550 V, BS88/A1, 14 x 55 mm, gL/gG, BS, offset bolted tags (slotted), general industrial applications, BS88-2, IEC 60269-2, Breaking Capacity 80 kA, Optional accessories fuse-holder RS20 CM32FC · · · Breaking Capacity: 80kA 550V AC · · Current Rating: 10A · · Length: 55.2mm · · Mounting Type: Bolt-in · · Voltage Rating: 550V AC · · Fixing Centre: 44mm

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NITD10 Categories: , , Brand: Product Code: 2500013943

Description

Technical Specifications  Technical Specifications HRC fuse Type of fuse status indicator None Fuse construction type according to IEC 60269 A1 Fuse system according to IEC 60269 Fuse system E Colour code None Utilization category gG (cable protection/equipment protection) Mounting holes M4 Centre-to-centre distance of connections 42.5 mm Current type AC Rated current 10 A Breaking capacity 80 kA Power loss at rated current 2.1 W Rated voltage AC 550 V · Technical Data Sheet – Click to Download
