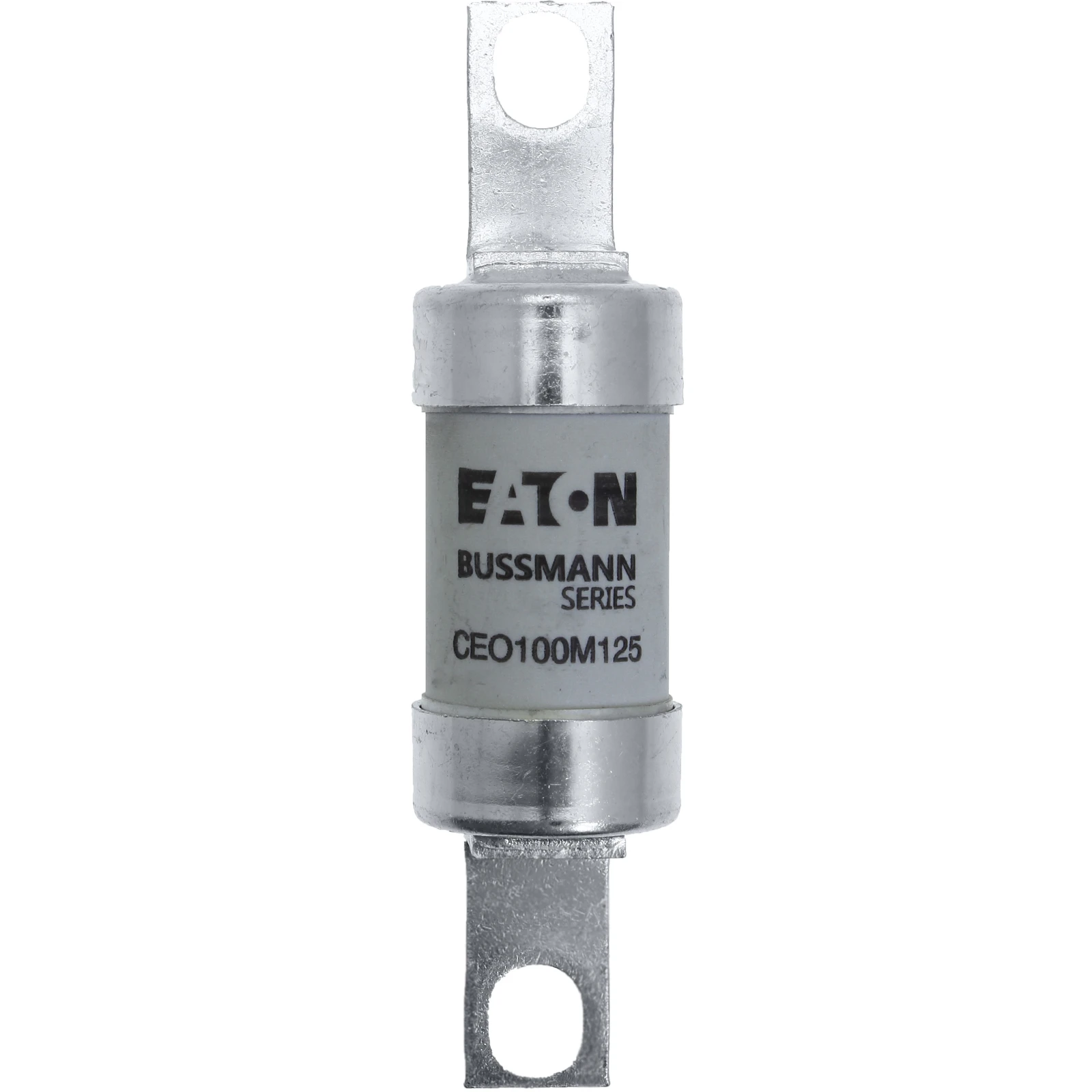

Fuse-link LV 100 A AC 415 V BS88/A4 27 x 110 mm gM BS 100M125
Fuse-link LV 100 A AC 415 V BS88/A4 27 x 110 mm gM BS 100M125
Fuse-link LV 100 A AC 415 V BS88/A4 27 x 110 mm gM BS 100M125 - Image 2
Fuse-link LV 100 A AC 415 V BS88/A4 27 x 110 mm gM BS 100M125 - Image 3
Fuse-link LV 100 A AC 415 V BS88/A4 27 x 110 mm gM BS 100M125 - Image 4

Fuse-link LV 100 A AC 415 V BS88/A4 27 x 110 mm gM BS 100M125

£19.24 Incl. VAT

Industrial offset bolted tags fuse links are specifically designed for the protection of general motor applications. · · · BS reference: A4 · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gG characteristics for cable protection · · Power loss values within the limits of IEC 60269 · · Compatible with Red Spot fuse holder 100A RS100 · · Pre-arching: 57,000 · · Total at 415V: 150,000 · · Watts loss: 6.5

29 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CEO100M125 Categories: , , Brand: Part Number: 2500013181

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Fuse system according to IEC 60269 Fuse system E Mounting holes M8 Utilization category gM (motor protection) Type of fuse status indicator None Current type AC Fuse construction type according to IEC 60269 A4 Centre-to-centre distance of connections 93.5 mm Rated current 125 A Rated voltage AC 415 V Breaking capacity 80 kA Power loss at rated current 6.5 W · Technical Data Sheet – Click to Download
