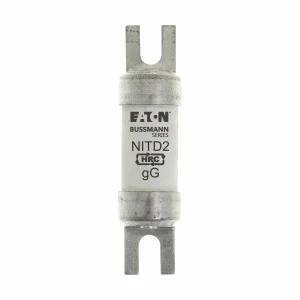

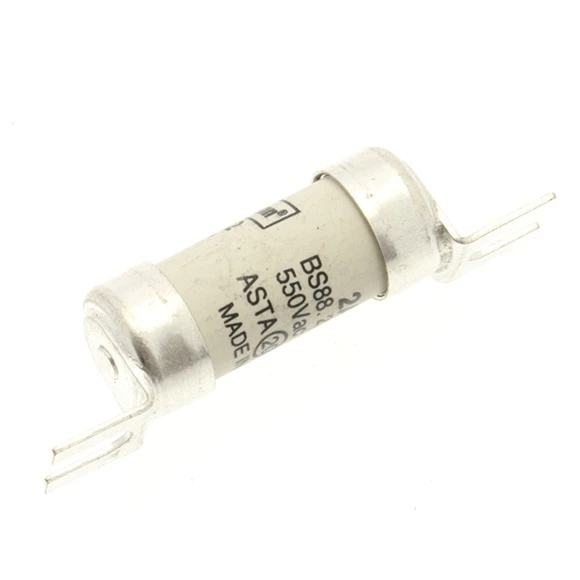

Eaton Fuse-link LV 2 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS
Eaton Fuse-link LV 2 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS
Eaton Fuse-link LV 2 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 2
Eaton Fuse-link LV 2 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 3
Eaton Fuse-link LV 2 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 4

Eaton Fuse-link LV 2 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS

£2.50 Incl. VAT

A Low Voltage Fuse Link, with offset bolted tags. The range of British standard Low Voltage Fuse Link size is A1, for protection of general industrial applications. · · · For general purpose · · Compatible fuse holders range · · Meets BS88 part 1 and 2 and IEC 60269-1 and -2 · · Recyclable

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NITD2 Categories: , , Brand: Product Code: 2500013932

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Fuse construction type according to IEC 60269 A1 Type of fuse status indicator None Utilization category gG (cable protection/equipment protection) Fuse system according to IEC 60269 Fuse system E Current type AC Mounting holes M4 Centre-to-centre distance of connections 42.5 mm Rated current 2 A Breaking capacity 80 kA Power loss at rated current 0.9 W Rated voltage AC 550 V · Technical Data Sheet – Click to Download
