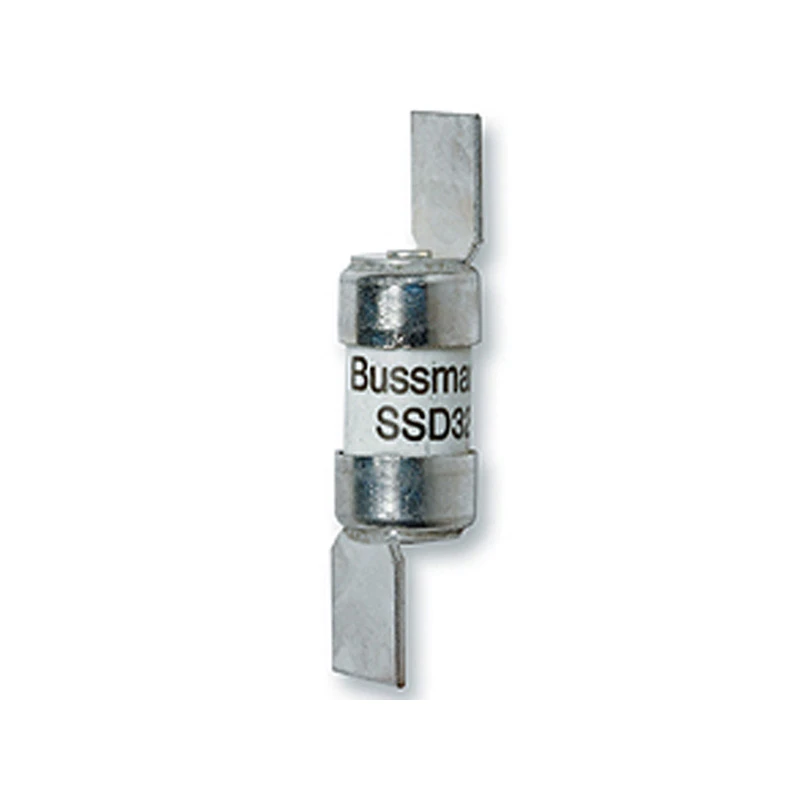

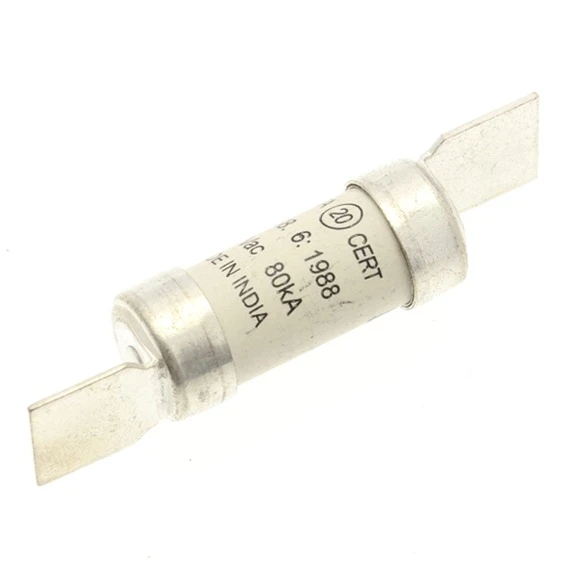

Fuse-link LV 20 A AC 550 V BS88/F1 14 x 59 mm gL/gG BS
£2.56 Incl. VAT
Fuse, Fuse-link, low voltage, 20 A, AC 550 V, BS88/F1, 14 x 59 mm, gL/gG, BS, offset bladed tags, general industrial applications, BS88-2, IEC 60269-2, Breaking Capacity 80 kA, Optional accessories fuse-holder 32NNS SC32 · · · BS reference: F1 · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gG characteristics for cable protection · · Power loss values within the limits of IEC 60269 · · Compatible with Safeloc fuse holder 32A NNS and Safeclip fuse holder 32A SC32 · · Pre-arching: 260 · · Total at 415V AC: 1,070 · · Watts loss: 1.8 · · Hole Size: 8mm · · IP Rating: IP4X
17 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Fuse construction type according to IEC 60269 F1 Current type AC Rated current 20 A Breaking capacity 80 kA Rated voltage AC 550 V Power loss at rated current 1.8 W · Technical Data Sheet – Click to Download
