Eaton Fuse-link LV 200 A AC 415 V BS88/B2 31 x 136 mm gM BS 200M250
Eaton Fuse-link LV 200 A AC 415 V BS88/B2 31 x 136 mm gM BS 200M250

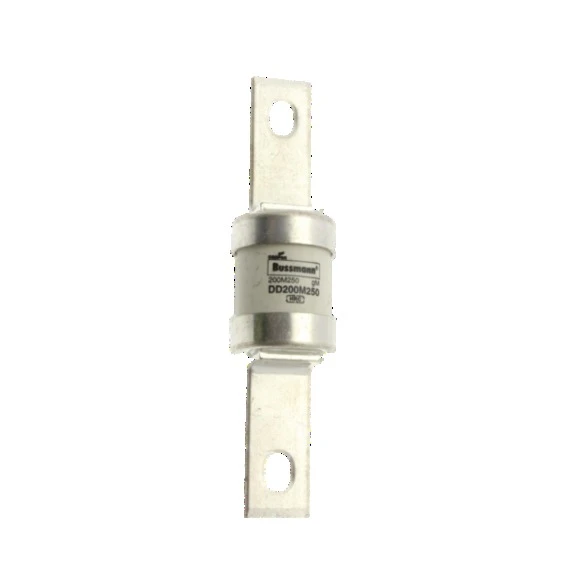

Eaton Fuse-link LV 200 A AC 415 V BS88/B2 31 x 136 mm gM BS 200M250 - Image 2

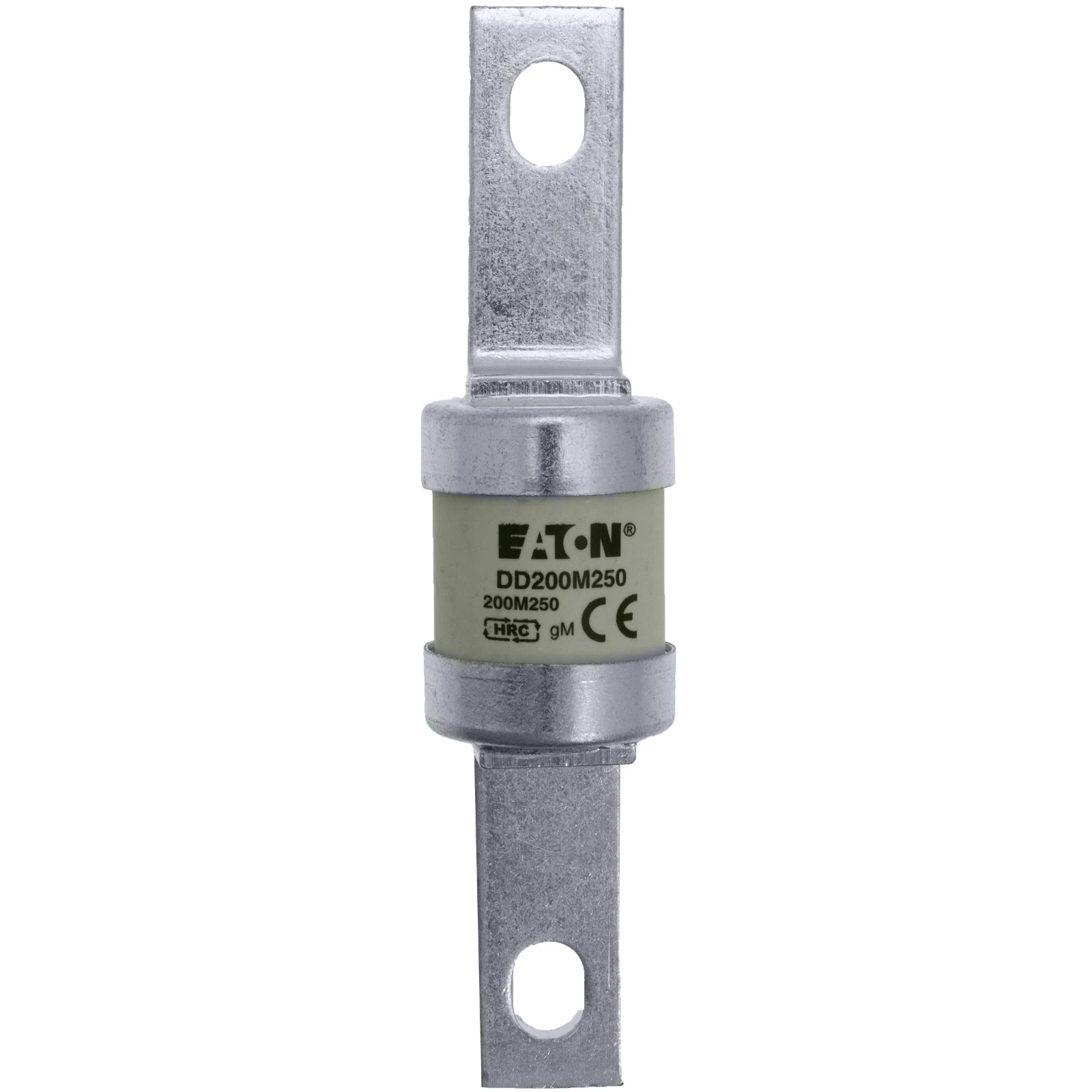

Eaton Fuse-link LV 200 A AC 415 V BS88/B2 31 x 136 mm gM BS 200M250 - Image 3
Eaton Fuse-link LV 200 A AC 415 V BS88/B2 31 x 136 mm gM BS 200M250 - Image 4

Eaton Fuse-link LV 200 A AC 415 V BS88/B2 31 x 136 mm gM BS 200M250

£31.01 Incl. VAT

Industrial centre bolted tags fuse links are specifically designed for the protection of general motor applications. · · · BS reference: B2 · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gM characteristics for motor protection applications · · Power loss values within the limits of IEC 60269 · · Compatible with Red Spot fuse holder 200A RS200 · · Pre-arching: 200 · · Total at 415V: 480 · · Watts loss: 11

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: DD200M250 Categories: , , Brand: Product Code: 2500013195

Description

Technical Specifications  Technical Specifications HRC fuse Utilization category gM (motor protection) Type of fuse status indicator None Colour code None Fuse system according to IEC 60269 Fuse system E Mounting holes M8 Fuse construction type according to IEC 60269 B2 Breaking capacity 80 kA Rated current 250 A Current type AC Centre-to-centre distance of connections 111 mm Rated voltage AC 415 V Power loss at rated current 11 W · Technical Data Sheet – Click to Download
