Fuse-link LV 40 A AC 500 V BS88/A3 21 x 87 mm gL/gG BS
Fuse-link LV 40 A AC 500 V BS88/A3 21 x 87 mm gL/gG BS
Fuse-link LV 40 A AC 500 V BS88/A3 21 x 87 mm gL/gG BS - Image 2

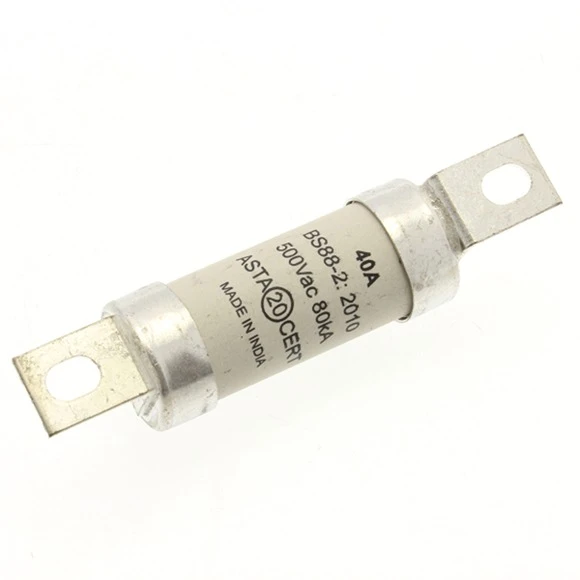

Fuse-link LV 40 A AC 500 V BS88/A3 21 x 87 mm gL/gG BS - Image 3

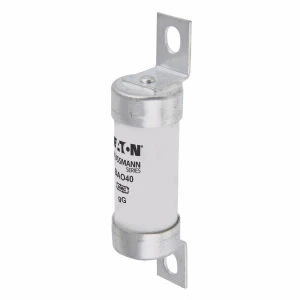

Fuse-link LV 40 A AC 500 V BS88/A3 21 x 87 mm gL/gG BS - Image 4

Fuse-link LV 40 A AC 500 V BS88/A3 21 x 87 mm gL/gG BS

£6.20 Incl. VAT

An Fuse Link with offset bolted tags. The range of British standard Low Voltage Fuse Link size is A3, for protection of general industrial applications. · · · Good peak let-through current limitation · · 1: 1.6 Selective coordinate ratio between ‘minor’ and ‘major’ fuse · · Power loss values well within the limits of IEC 60269 · · Recyclable

33 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BAO40 Categories: , , Brand: Part Number: 2500012972

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Fuse construction type according to IEC 60269 A3 Mounting holes M5 Current type AC Power loss at rated current 4.7 W Centre-to-centre distance of connections 73.5 mm Rated voltage AC 500 V Breaking capacity 80 kA Rated current 40 A · Technical Data Sheet – Click to Download
