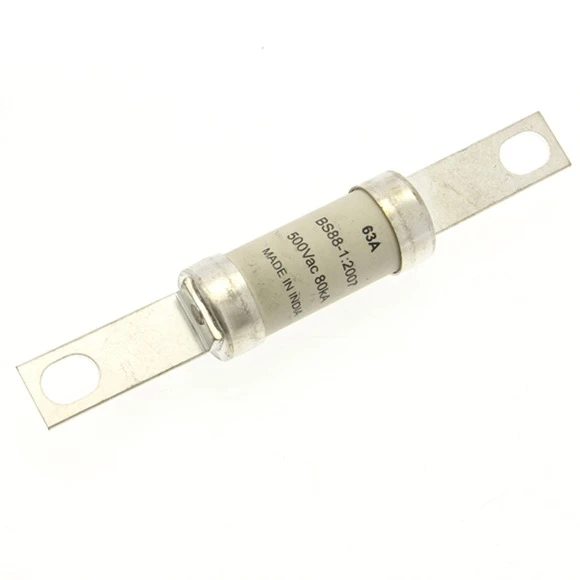

Fuse-link LV 63 A AC 500 V BS88 21 x 129 mm gL/gG BS
Fuse-link LV 63 A AC 500 V BS88 21 x 129 mm gL/gG BS
Fuse-link LV 63 A AC 500 V BS88 21 x 129 mm gL/gG BS - Image 2
Fuse-link LV 63 A AC 500 V BS88 21 x 129 mm gL/gG BS - Image 3
Fuse-link LV 63 A AC 500 V BS88 21 x 129 mm gL/gG BS - Image 4

Fuse-link LV 63 A AC 500 V BS88 21 x 129 mm gL/gG BS

£7.94 Incl. VAT

Fuse, Fuse-link, low voltage, 63 A, AC 500 V, BS88, 21 x 129 mm, gL/gG, BS, centre-bolted tags, general industrial applications, BS88, IEC 60269, Breaking Capacity 80 kA · · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gG characteristics for cable protection · · Power loss values within the limits of IEC 60269 · · Compatible with Red Spot fuse holder 200A RS200 · · Pre-arching: · · Total at 415V AC: 18 · · Total at 550V AC: 25,100 · · Watts loss: 5.6 · · 500V AC/250V DC · · 500V AC/250V DC

45 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BD63 Categories: , , Brand: Part Number: 2500012992

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Utilization category gG (cable protection/equipment protection) Mounting holes M8 Current type AC/DC Rated current 63 A Rated voltage AC 500 V Breaking capacity 80 kA Centre-to-centre distance of connections 111 mm Power loss at rated current 5.6 W Rated voltage DC 250 V · Technical Data Sheet – Click to Download
