Fuse-link LV 80 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS
Fuse-link LV 80 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS

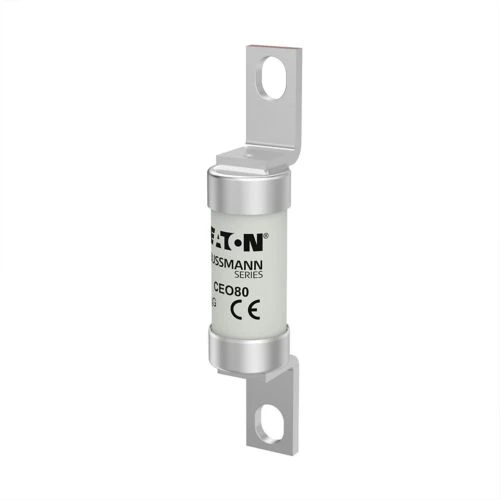

Fuse-link LV 80 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS - Image 2

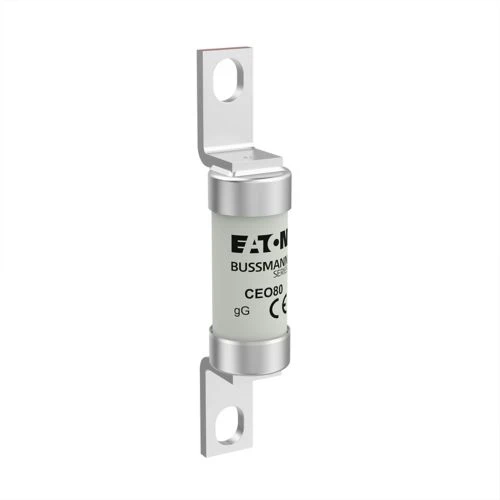

Fuse-link LV 80 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS - Image 3

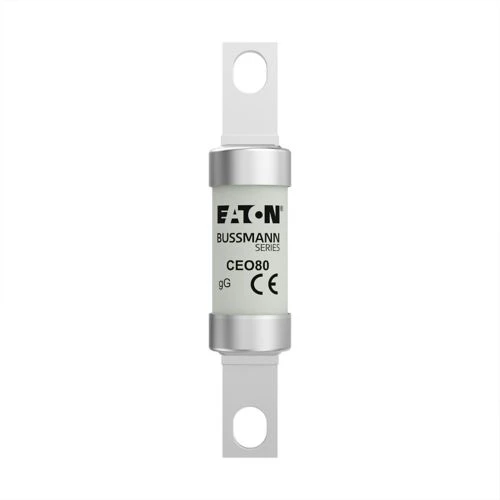

Fuse-link LV 80 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS - Image 4

Fuse-link LV 80 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS

£11.14 Incl. VAT

CEO80 is a Low Voltage Fuse Link, with offset bolted tags. This fuse is Q1 fusing factor for general purpose. The range of British standard Low Voltage Fuse Link size is A4, for protection of general industrial applications. · · · Breaking Capacity: 80kA @ 550V AC · · Current Rating: 80A · · Length: 110mm · · Material: Ceramic (Body) · · Mounting Type: Bolt-in Mount · · Voltage Rating: 550V AC · · Fixing Centre: 94mm · · CE: yes

42 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CEO80 Categories: , , Brand: Part Number: 2500013179

Description

Technical Specifications  Technical Specifications HRC fuse Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Colour code None Utilization category gG (cable protection/equipment protection) Fuse construction type according to IEC 60269 A4 Mounting holes M8 Current type AC Breaking capacity 80 kA Rated current 80 A Centre-to-centre distance of connections 94 mm Power loss at rated current 7.2 W Rated voltage AC 500 V · Technical Data Sheet – Click to Download
