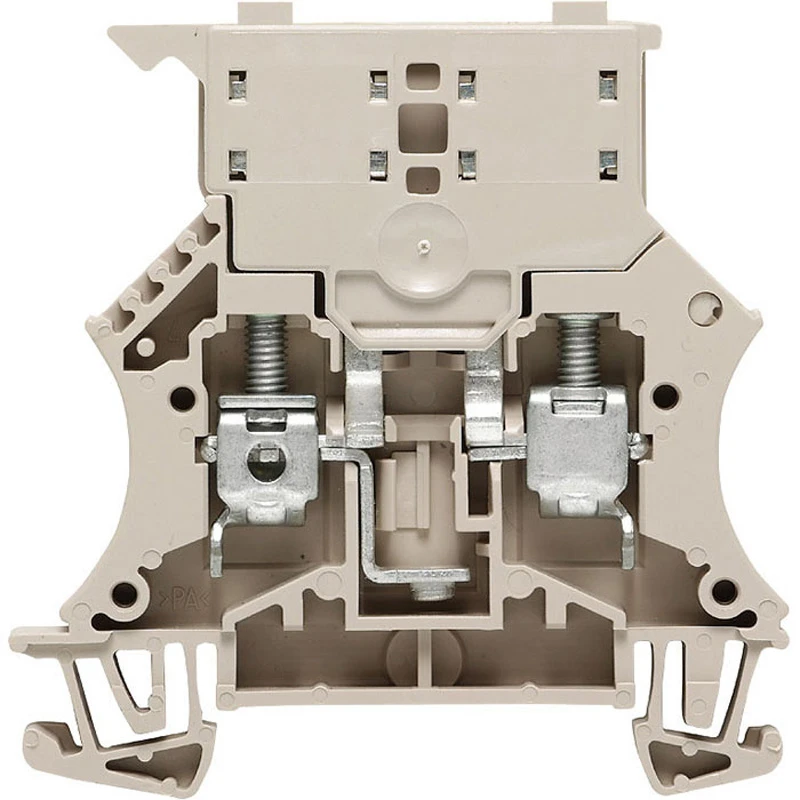

Fuse Terminal Wsi 6 Screw Connection 6mm 6.3A 500V Beige
£4.24 Incl. VAT
This is a W Series Fuse Terminal made of Wemid with Snap-On mounting. The WSI 6 offers high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. The Klippon® connect provides a proven response to a range of different requirements. · · · Identical contours for easier planning · · The maintenance-free connection means the clamping screw does not need to be re-tightened · · Vibration-resistant connectors – ideal for applications in harsh conditions · · Quick installation as the products are delivered with clamping yoke open · · Small “W-Compact” size saves space in the panel
352 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Fused terminal block Type of fuse insert G-fuse 5×20 mm Type of indication element for defect indication None Inflammability class of insulation material acc. with UL94 V0 Mounting method DIN rail (top hat rail) 35 mm Connection position Sideways Material insulation body Urea formaldehyde Length 60 mm Rated current In 6.3 A Rated voltage 250 V Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Voltage type for defect indication AC/DC Colour Beige Height at lowest possible mounting height 62 mm Number of levels 1 Width/grid dimension 7.9 mm Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 10 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 6 mm² Supply voltage for defect-indication 150 – 230 V Connectable conductor cross section solid-core 0.5 – 10 mm² Connectable conductor cross section multi-wired 1.5 – 10 mm² Closing plate required Yes · Technical Data Sheet – Click to Download
