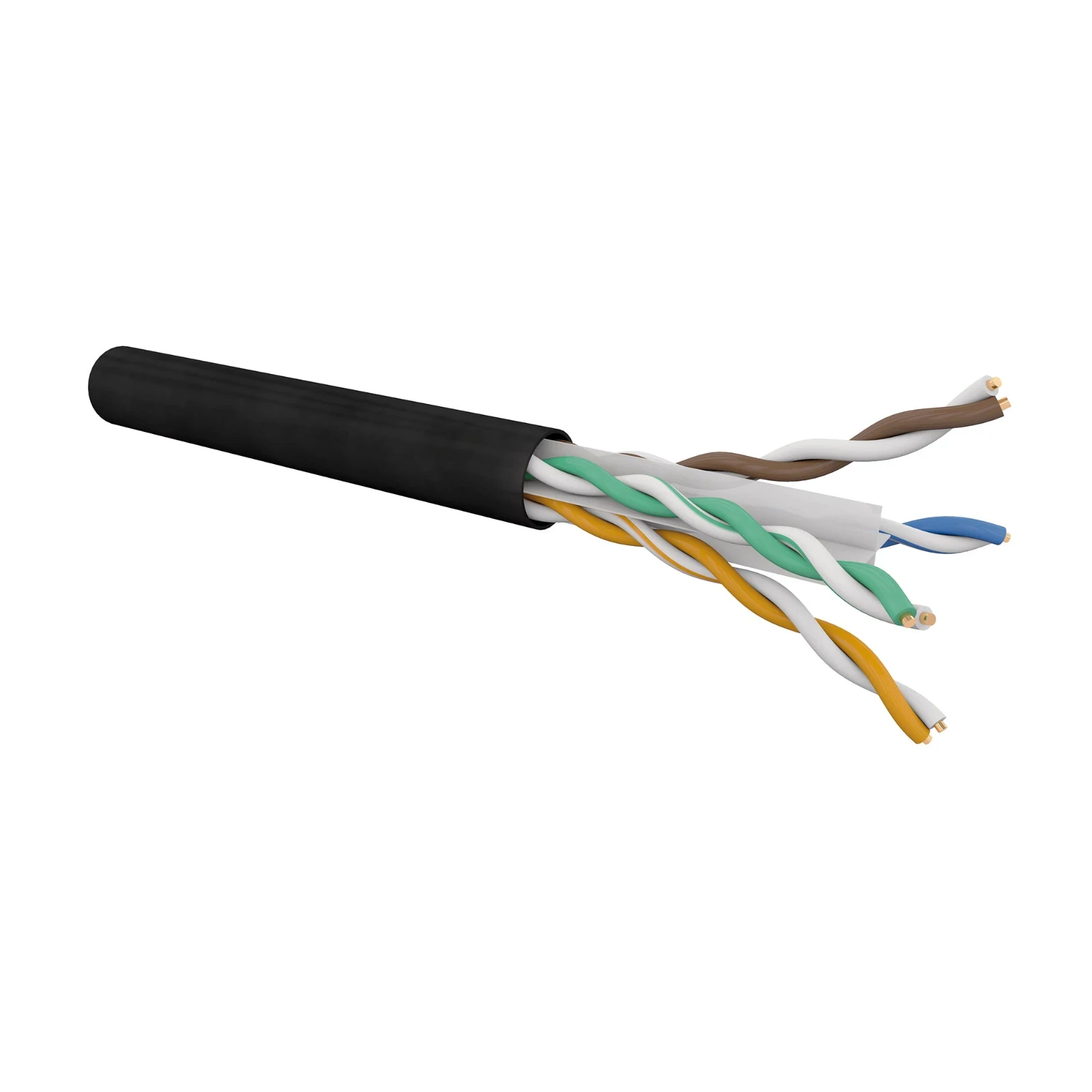

Gigamedia Cable CAT5e 4P UUTP AWG24 PE Black External Grade

Description

Technical Specifications  Technical Specifications Data and communication cable Overall screen type None Individual screen type None Reaction-to-fire according to EN 13501-6: Class None Conductor category Class 1 = solid Sheath colour Black Stranding element Pairs Category 5E Core identification Colour Number of stranding elements – NVP value 67 % Outer diameter approx. 5.4 mm Min. permitted bending radius, stationary application/permanent installation – mm Number of cores 8 Nominal cross sectional area of conductor 0.203 mm² Conductor Diameter 0.49 mm Weight – kg/km Min. permitted bending radius, moving application/free movement – mm Compatible with Grade3TV according to XP-C 90-483 No Suitable for underground installation No Halogen free according to IEC 60754-2 No UV resistant No Permitted cable outer temperature after assembling without vibration -40 – 70 °C Permitted cable outer temperature during assembling/handling -30 – 60 °C Min. permitted bending radius, moving application with forced guidance – mm Certified for shipboard application No Radial water blocking cable No Compatible with Grade2TV according to XP-C 90-483 No Core identification according to HD 308 S2 No Suitable for use as telephone cable No Suitable for use as computer data cable No Suitable for use as signalling cable No Longitudinal water blocking cable No Low smoke according to IEC 61034-2 No Oil resistant according to IEC 60811-404 No
