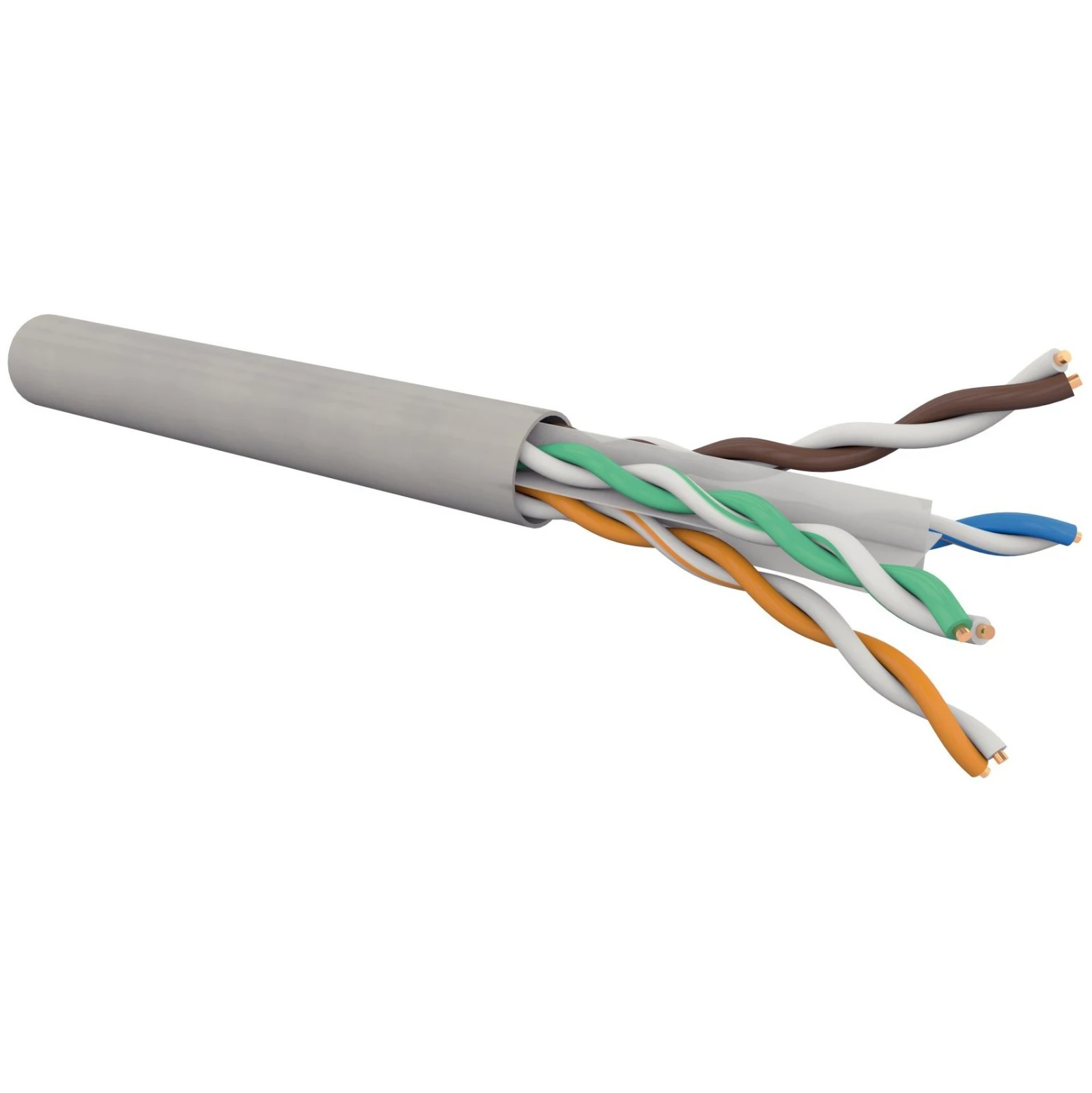

Gigamedia Cable CAT6 4P AWG24 U/UTP PVC ECA Grey PB 305m
Gigamedia Cable CAT6 4P AWG24 U/UTP PVC ECA Grey PB 305m
Gigamedia Cable CAT6 4P AWG24 U/UTP PVC ECA Grey PB 305m - Image 2
Gigamedia Cable CAT6 4P AWG24 U/UTP PVC ECA Grey PB 305m - Image 3
Gigamedia Cable CAT6 4P AWG24 U/UTP PVC ECA Grey PB 305m - Image 4

Gigamedia Cable CAT6 4P AWG24 U/UTP PVC ECA Grey PB 305m

£150.46 Incl. VAT

The GIGAMEDIA CAT6 cables are data transmission cables designed for applications in frequency range up to 250 MHz. These cables meets and exceed the requirements of ISO 11801 CAT6, ensuring to get Class E Permanent Link performance when combined with Gigamedia CAT6 jacks. · · · Packaging: 305 m (box) · · Complies with standards: ANSI/TIA-568-C.2, EN 50173 ISO/IEC 11801 · · Applications: IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.3at/af (PoE/PoE+) · · Sheath colour: grey (RAL 7035) · · Diameter of outer sheath: 5.8 mm · · Frequency range: from 0 to 250 MHz · · Impedance characteristics: 100 O · · Sheath: PVC · · NVP: 69 % · · Conductor copper gauge AWG 24

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GGM C6U4PECARU3 Categories: , , Brand: Product Code: 2501674381

Description

Technical Specifications  Technical Specifications Data and communication cable Sheath colour Grey Overall screen type None Individual screen type None Reaction-to-fire according to EN 13501-6: Acidity None Reaction-to-fire according to EN 13501-6: Smoke production None Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Reaction-to-fire according to EN 13501-6: Class Eca Stranding element Pairs Category 6 Conductor category Class 1 = solid Core identification Colour Sheath material Polyvinyl chloride (PVC) Nominal cross sectional area of conductor 0.235 mm² Weight – kg/km Conductor Diameter 0.53 mm Number of cores 8 NVP value 69 % Min. permitted bending radius, stationary application/permanent installation – mm Outer diameter approx. 5.5 mm Number of stranding elements – Min. permitted bending radius, moving application with forced guidance – mm Min. permitted bending radius, moving application/free movement – mm Permitted cable outer temperature during assembling/handling 0 – 50 °C Permitted cable outer temperature after assembling without vibration -20 – 60 °C Halogen free according to IEC 60754-2 No Suitable for underground installation No Certified for shipboard application No Longitudinal water blocking cable No Compatible with Grade2TV according to XP-C 90-483 No Compatible with Grade3TV according to XP-C 90-483 No Radial water blocking cable No Core identification according to HD 308 S2 No Suitable for use as telephone cable No Suitable for use as computer data cable No Suitable for use as signalling cable No Low smoke according to IEC 61034-2 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
