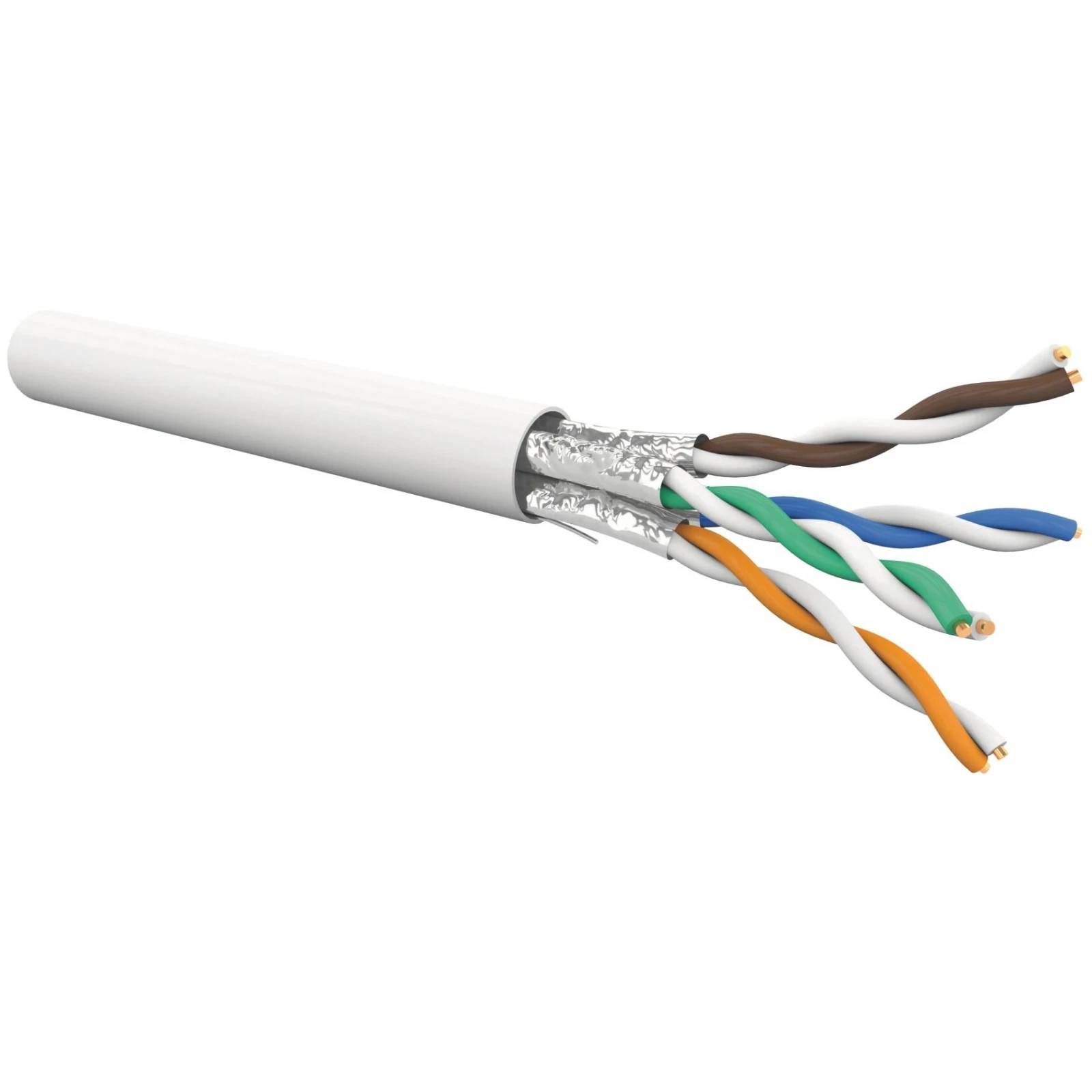

Gigamedia Cable CAT6A 4P AWG23 UFTP HF DCA White REELEX 305m

Description

Technical Specifications  Technical Specifications Data and communication cable Overall screen type None Armouring/reinforcement None Conductor category Class 2 = stranded Stranding element Pairs Category 6A (IEC) Reaction-to-fire according to EN 13501-6: Class Dca Cable geometry Round Segregation class according to EN 50174-2 C AWG size 23 Min. permitted bending radius, moving application with forced guidance – mm Min. permitted bending radius, stationary application/permanent installation – mm Weight 53 kg/km Approved type of underground installation Concealed in duct or conduit Core identification Colour Sheath colour White Min. permitted bending radius, moving application/free movement – mm Permitted cable outer temperature after assembling without vibration – – – °C Permitted cable outer temperature during assembling/handling 0 – 50 °C Nominal cross sectional area of conductor – mm² Conductor Diameter 0.55 mm Number of cores 8 NVP value 74 % Outer diameter approx. 7.4 mm Number of stranding elements 8 Radial water blocking cable No Low smoke according to IEC 61034-2 Yes Compatible with Grade3TV according to XP-C 90-483 No Certified for shipboard application No Oil resistant according to IEC 60811-404 No Halogen free according to IEC 60754-2 Yes Suitable for underground installation No UV resistant No Longitudinal water blocking cable No Core identification according to HD 308 S2 No Suitable for use as telephone cable No Suitable for use as computer data cable Yes Suitable for use as signalling cable No Compatible with Grade2TV according to XP-C 90-483 No · Technical Data Sheet – Click to Download
