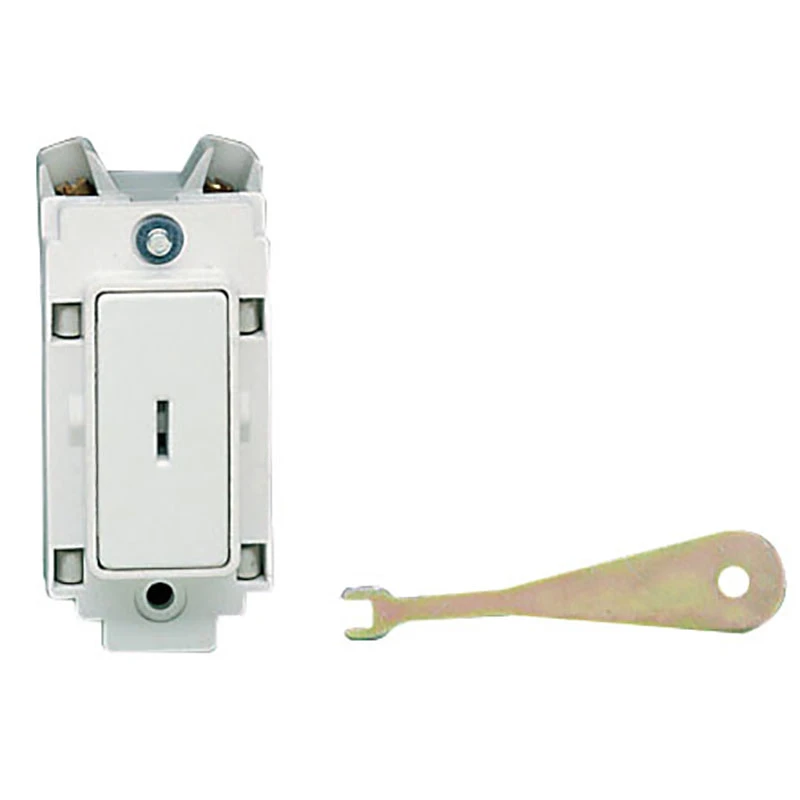

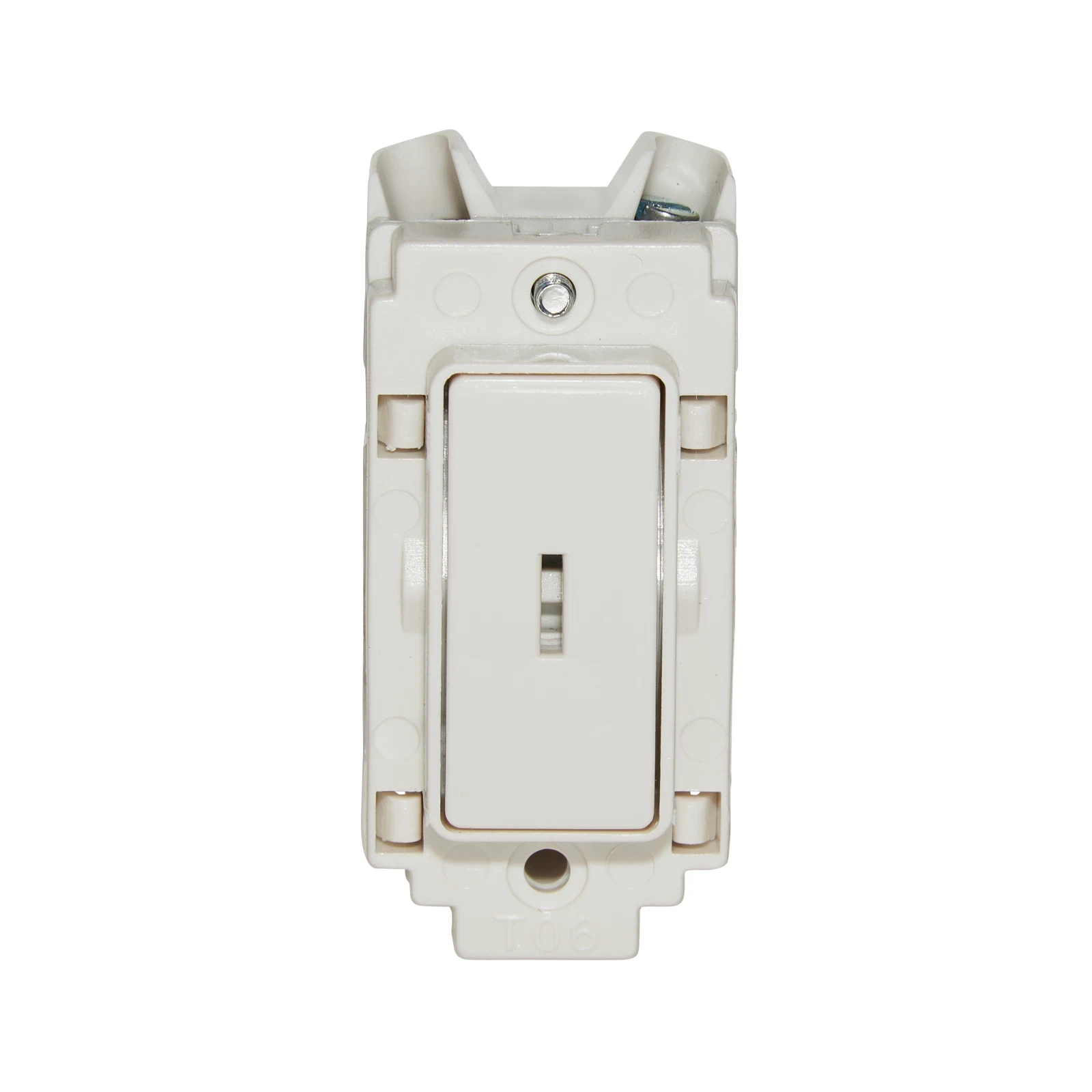

Grid Switch DP Module Key 20AX White
£14.45 Incl. VAT
The switch is complemented by products which cater for specific applications such as cooker control units, shaver units, fan control switches and shower control switches. · · · Unique labyrinth switch design minimises visible arc flash and prevents front access to live parts · · Positive drive switch action prevents balancing between the ON and OFF position and gives indication of the contact position · · Silver alloy contacts · · Low contact resistance · · BS EN60669-1 standards
Out of stock
Description
Technical Specifications Technical Specifications Switch Colour of rocker/switch operator White Number of module spaces (modular system) 1 Method of operation Key Number of rockers/gangs 0 Height of device 55.5 mm Rated current 20 A Width of device 25 mm Minimum depth of back box 25 mm Nominal voltage 250 V Switching current for fluorescent lamps 20 AX Recess depth 20.5 mm Depth of device 25 mm Feedback-signal contact No Washing machine switch No Push button switch No With mounting plate No Halogen free Yes · Technical Data Sheet – Click to Download
