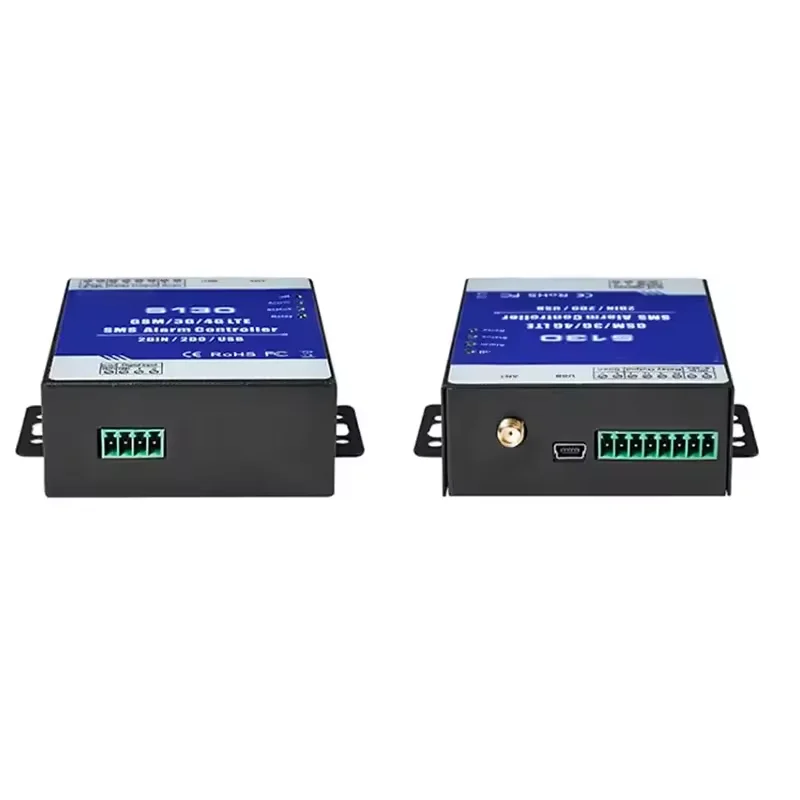

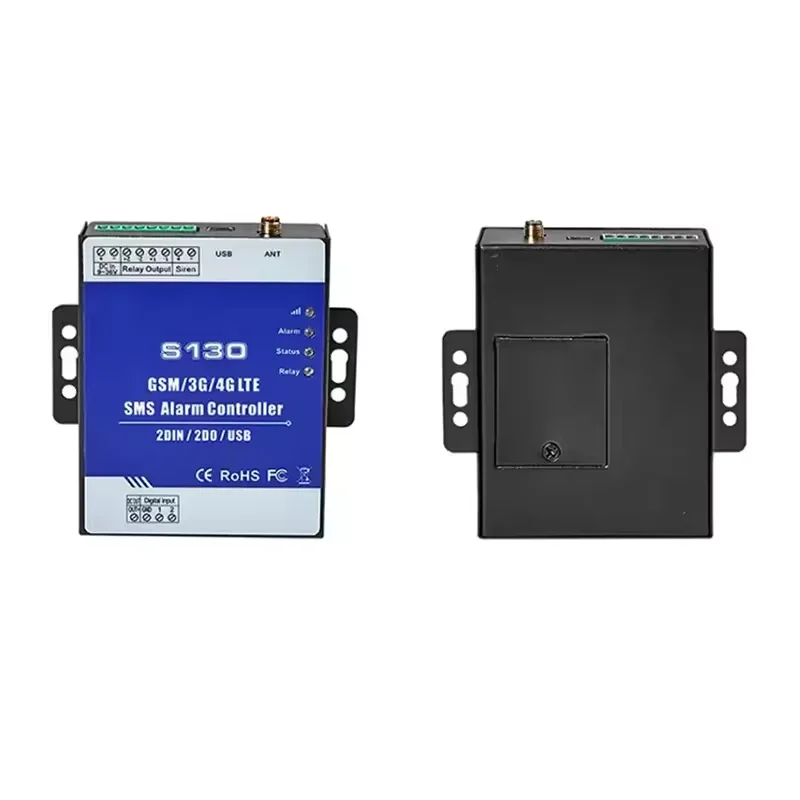

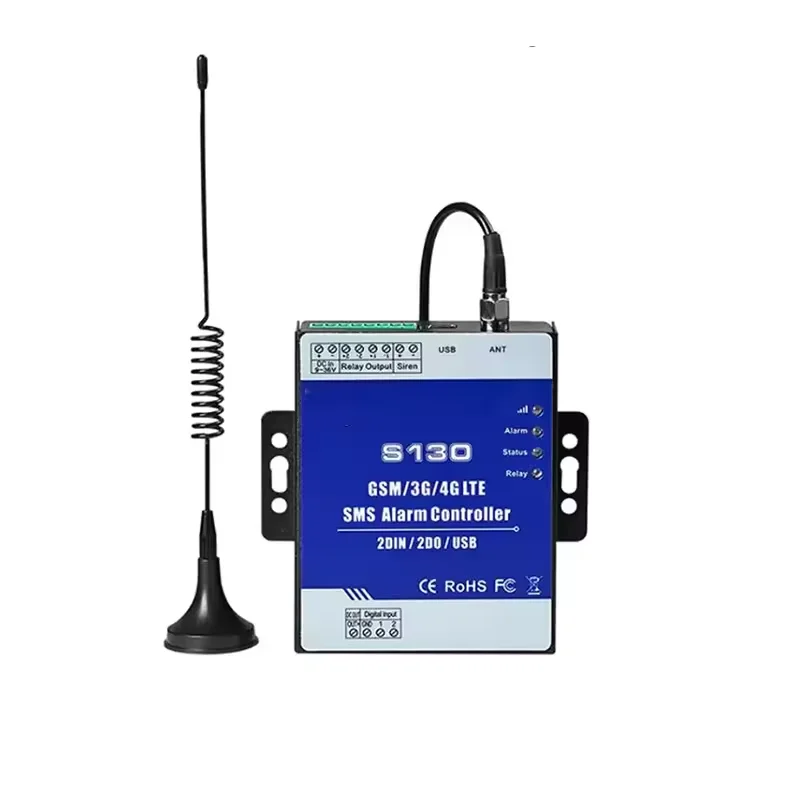

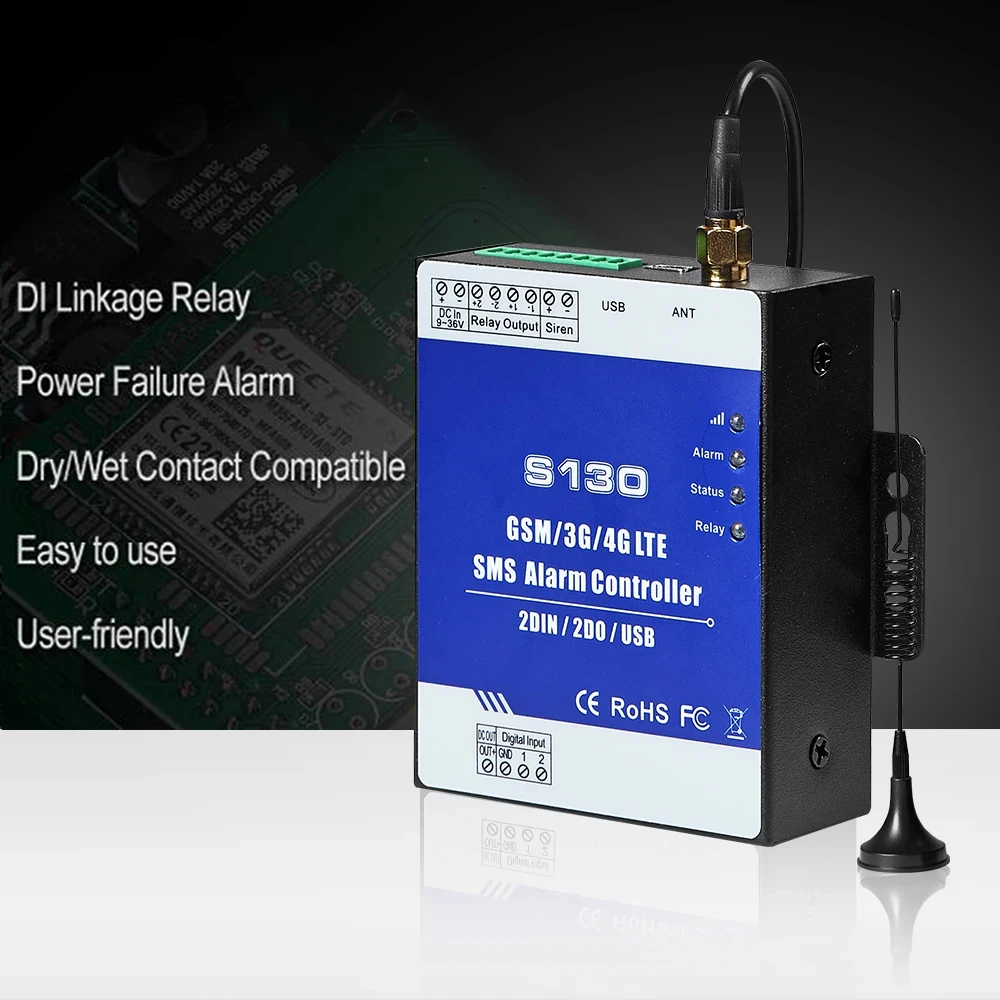

GSM 4G Remote Alarm Controller S130 Cellular GSM Relay Switch Digital Input Monitoring Alarm Unit Support APP

Description

Product description

Specification Item Reference Scope DC Power Supply Standard Adapter: DC 12V/1A Range 9~36VDC Power Consumption Standby:12V/70mA; WorkingMax.:12V/300mA GSM/3G Frequency 2G: 850/900/1800/1900Mhz 3G version Optional: (UMTS/HSDPA) W:900/2100@UMTS 900/1800@GSM; C:850/1900@UMTS 850/900/1800/1900@GSM; T:850/2100@UMTS 850/900/1800/1900@GSM; 4G LTE SIM Interface Supporting 3V SIM Card External Antenna SMA Antenna interface, 50 Ohm Serial Interfaces 1 USB Port Digital Inputs 2 NC or NO and EOL is optional Relay Outputs 2 Relay Outputs 7A@125VAC 5A@125VAC 20A@14VDC Siren Output 1 Backup Battery 3.7V 900mAH Exterior Dimension 70*88*30mm Installation 35mm standard DIN rail(Optional) Wall mount (Default) 1. Brief introduction The GSM SMS Controller is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems. Actually the GSM SMS Controller can be used in places which require turning ON/OFF your system, machines, and equipments remotely with a SMS text from your mobile phone and protect your assets. Moreover, the GSM SMS Controller with multi-digital inputs for digital inputs, when any one of the inputs triggered, will start the siren or switch on the light automatically. In the meanwhile, the GSM SMS Controller will send SMS Alert to the owners immediately. This is very useful if you need protect your assets with low cost solution. Typically applications: 1.Security Alarm System applications; 2.Supervision and monitoring alarm systems; 3.Automatic monitoring system; 4.Vending Machines security protection; 5.Pumping Stations, Tanks, Oil or Water levels; 6.Buildings and Real Estate; 7.Weather Stations; 8.River Monitoring and Flood Control; 9.Oil and gas pipelines; 10.Corrosion protection 11.Temperatures, water leakage applications; 12.Wellheads, boat, vehicle; 13.Energy saving, street lights control system; 14.Valve controls; 15.Transformer stations; 16.Unmanned machine rooms; 17.Control room application; 18.Automation System, M2M; 19.GSM Access Control System, GSM Gate Opener, etc. Product Description Mainly Features * Quad band 850/900/1800/1900Mhz GSM GPRS Module inside; * 3G UMTS/HSDPA/4G Modules are optional.; * 32 bit MCU, reliable performance with in-built watchdog; * Support 2 relay outputs; * Alarm-Link Output Relaycan be switch on 0-120minutes if controller unit triggered; * 2 Alarm logicdigital inputs, NC or NO and EOL is optional; * Compatible with the Wet Contact, Reverse protection, to avoid the wrong connection damage; * 1 Siren output, can connect to the siren directly, once alarm occurred, will trigger the siren; * 3 SMS Alert numbers and 5 Alarm dial Telephone numbers can accept to the alarm message; * Supports armed, disarmed, inquiry status, switch on or off Independent Output Relay by SMS Commands; * Password protected, prevents unauthorized user; * Can be set up and programmed from PC Configurator by USB cable; * In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation; * Support Android/IOS APP, easily & friendly for use/configuration. * Support USB configure parameters, load profiles, andupgrade the firmware via PC; * Wall mount or 35mm standard DIN rail Design, convenient installation, * Metalliccover, small size, exterior dimension is L70*W88*H30mm. Packing & Delivery Package includes GSM Controller * 1 Power supply adapter * 1 USB Cable * 1 GSM Antenna * 1 CD (Pc programmer tool) * 1 Carton
