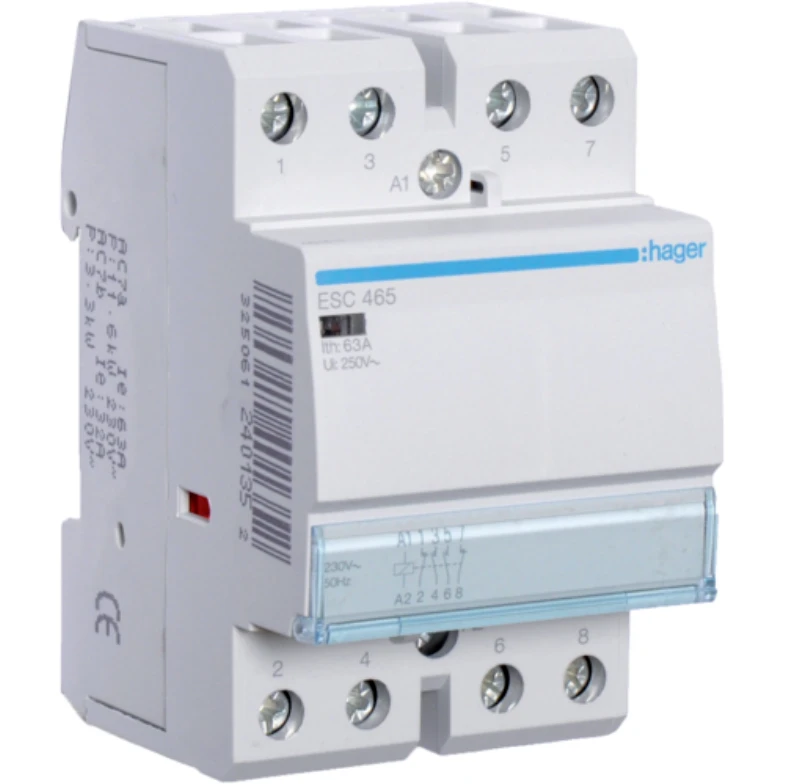

Hager Contactor 2No+2Nc 63A 230V

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating AC Type of electrical connection of main circuit Screw connection Rated operation power at AC-3, 400 V 10 kW Number of main contacts as normally open contact 2 Number of auxiliary contacts as normally open contact 0 Number of normally closed contacts as main contact 2 Number of auxiliary contacts as normally closed contact 0 Rated operation current Ie at AC-1, 400 V 63 A Rated operation current Ie at AC-3, 400 V 32 A Rated control supply voltage at DC 0 – 0 V Rated control supply voltage at AC 60 Hz 0 – 0 V Modular version Yes Rated control supply voltage at AC 50 Hz 230 – 230 V
