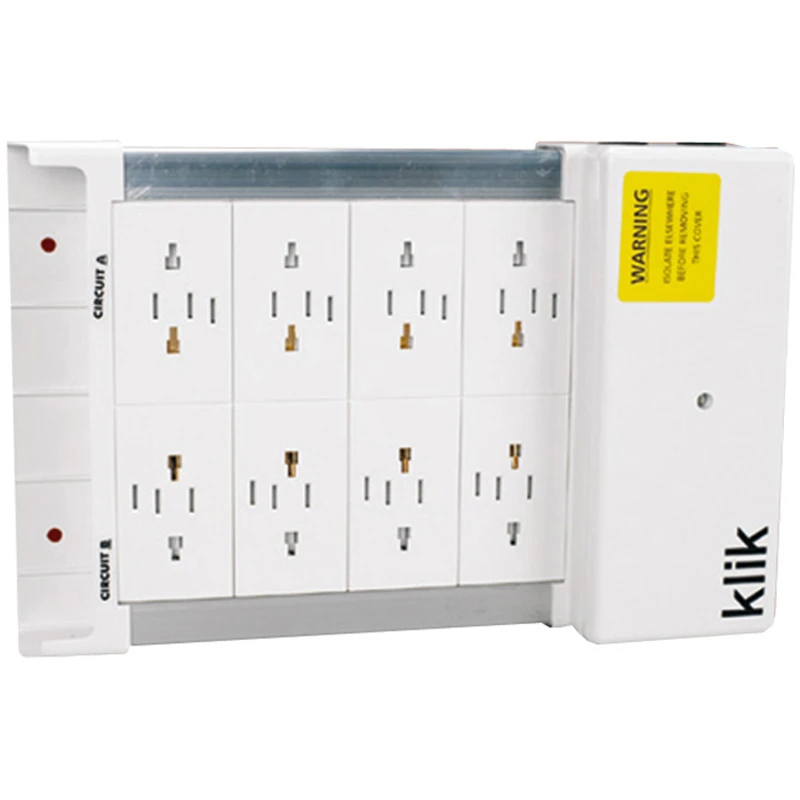

Hager Klik Marshalling Box 8 Way 4 Pole Lighting Distribution Unit 16A White

KLDS8 is a 8 way Lighting Distribution Box, making what used to be a time consuming task very quick and simple. The main terminals are rated at 16A and each socket outlet is rated at 6A each. The flexible conductor terminals are rated at 10A. The main terminal capacity is 5 x 4mm² and the flexible conductor terminal capacity is 1 x 1mm². The socket outlets accept Klik lighting plugs (3 Pin) and Klik AX plugs (4 Pin) as well as Klik pre-wired leads. The cable entry points in the box accept 20mm or 25mm conduit. The Klik range is a secure lighting and control connection system which has been developed by Hager. From a single plug-in action, it provides electrical and mechanical connection for lighting circuits. · · · 16A
