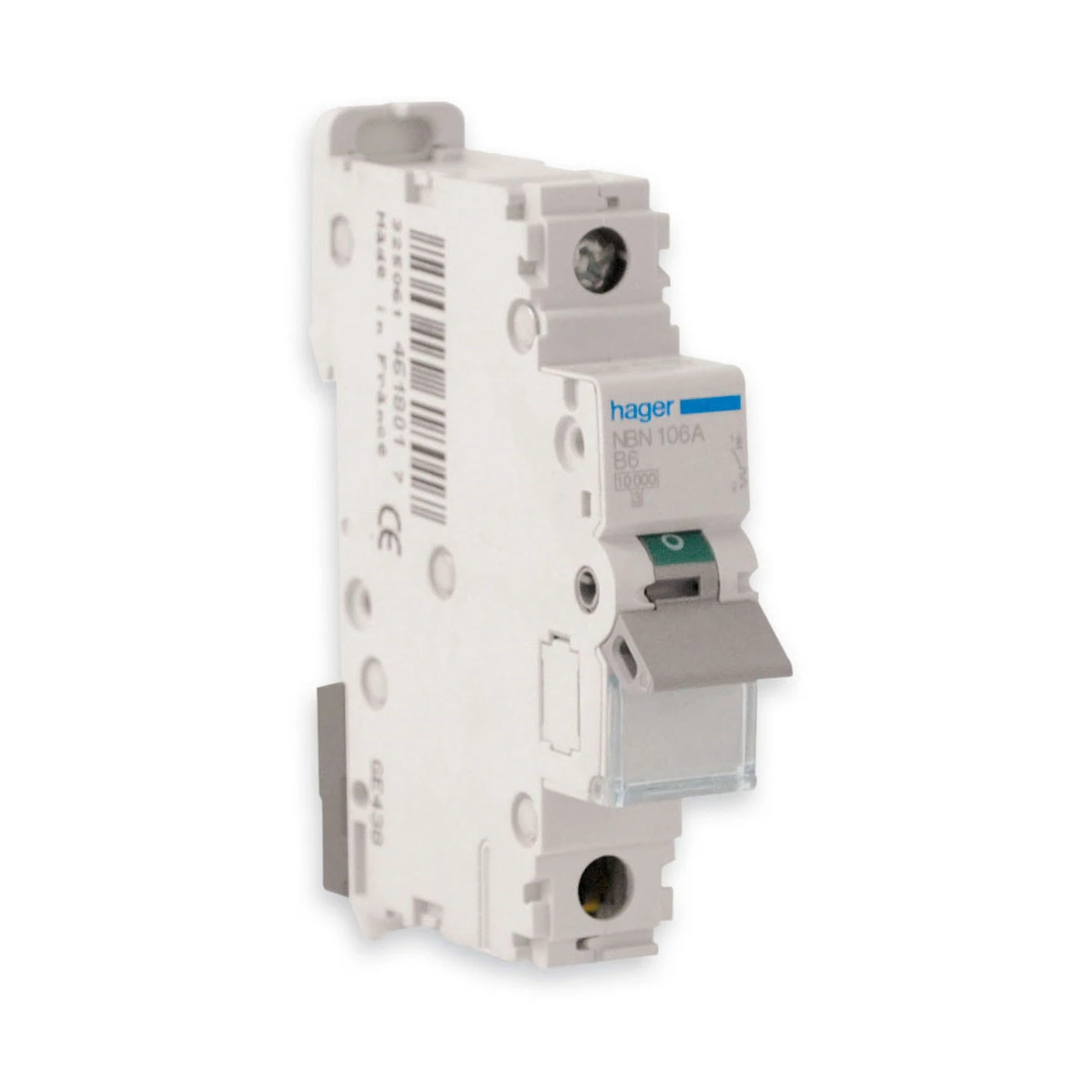

Hager MCB Single Pole Type B 1 Module 6A 10/15kA
Hager MCB Single Pole Type B 1 Module 6A 10/15kA
Hager MCB Single Pole Type B 1 Module 6A 10/15kA - Image 2

Hager MCB Single Pole Type B 1 Module 6A 10/15kA

£12.05 Incl. VAT

MCB 1P 10kA/15kA B-6A 1M · · · Protection and control of circuits against overload current · · Protection and control of circuits against short circuit current · · Comply with BS EN 60898 (10kA) & BS EN 60947-2 (15kA) · · Trip free mechanism · · The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour · · Rigid conductor 35mm² · · Flexible conductor 25mm² · · With a fast system of closing, we increase the withstand of contacts on all types of loads · · 2.8Nm tightening torque

648 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NBN106A Categories: , , Brand: Part Number: 2500224819

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Degree of protection (IP rating) IP2X Voltage type AC Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated current 6 A Rated voltage 415 V Frequency 50 – 60 Hz · Technical Data Sheet – Click to Download
