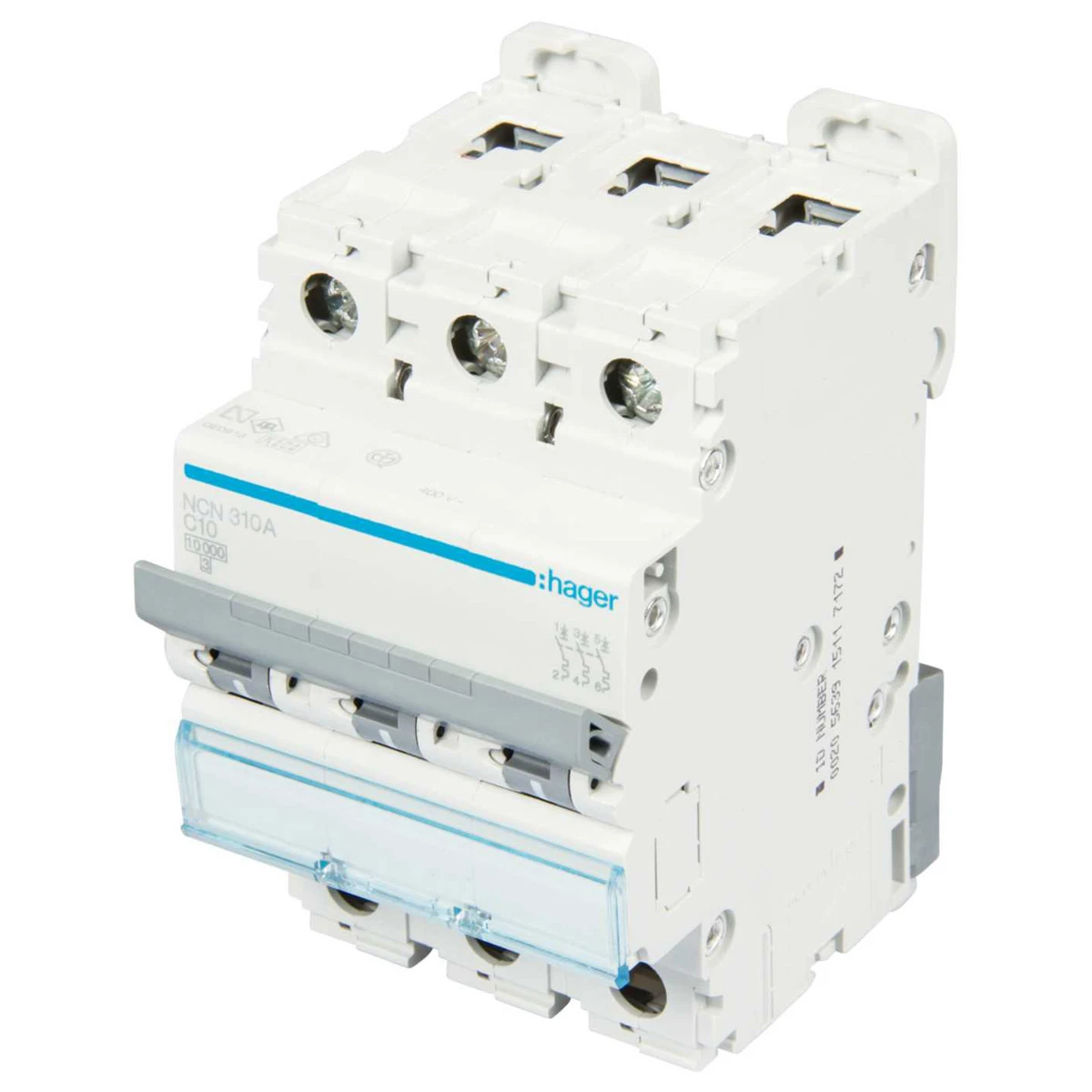

Hager MCB Triple Pole Type C 10A 10kA 3 Module
Hager MCB Triple Pole Type C 10A 10kA 3 Module
Hager MCB Triple Pole Type C 10A 10kA 3 Module - Image 2

Hager MCB Triple Pole Type C 10A 10kA 3 Module

£54.28 Incl. VAT

MCB 3P 10kA/15kA C-10A 3M · · · Protection of circuit against short circuit current · · Protection of circuit against overload current · · Comply with BS EN 60898 (10kA) & BS EN 60947-2 (15kA) · · Trip free mechanism · · The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour · · Rigid conductor 35mm² · · Flexible conductor 25mm² · · With a fast system of closing, we increase the withstand of contacts on all types of loads · · Ensure control

166 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NCN310A Categories: , , Brand: Part Number: 2500220910

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Degree of protection (IP rating) IP2X Voltage type AC Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 3 Rated current 10 A Rated voltage 415 V Frequency 50 – 60 Hz · Technical Data Sheet – Click to Download
