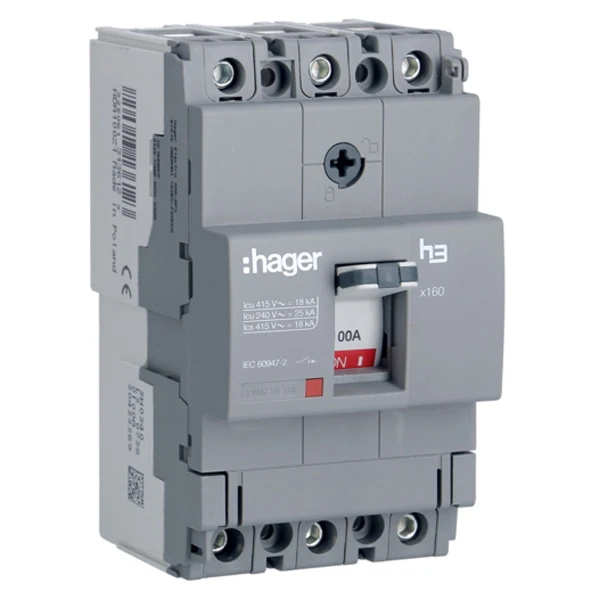

Hager MCCB Fixed Thermal/Fixed Magnetic Triple Pole 100A 18Ka 220/415V
Hager MCCB Fixed Thermal/Fixed Magnetic Triple Pole 100A 18Ka 220/415V
Hager MCCB Fixed Thermal/Fixed Magnetic Triple Pole 100A 18Ka 220/415V - Image 2

Hager MCCB Fixed Thermal/Fixed Magnetic Triple Pole 100A 18Ka 220/415V

£211.82 Incl. VAT

Hager Moulded Case Circuit Breaker has thermal magnetic trip unit with fixed thermal and fixed magnetic. Circuit breaker has access to a mechanical test button on the cover, which is also lockable to ensure that the MCCB settings are protected. Moulded case circuit breaker can be mounted on DIN rail with help of accessory. There is a connection capacity of 95mm for rigid cables and 70mm for flexible cables. · · · Rated current 100 Amp · · Triple Pole · · Breaking capacity Icu / Ics : 18 kA · · Access to mechanical test button on cover · · Connection capacity 95mm2 rigid cables / 70mm2 flexible cables · · Complies with BS EN 60947-2 · · IP4X protection rating

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: HDA100Z Categories: , , Brand: Product Code: 2500856306

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Type of control element Rocker lever Device construction Complete device in housing Type of electrical connection of main circuit Screw connection Rated permanent current Iu 100 A Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 18 kA Number of poles 3 Rated voltage 220 – 415 V Suitable for DIN rail (top hat rail) mounting Yes
