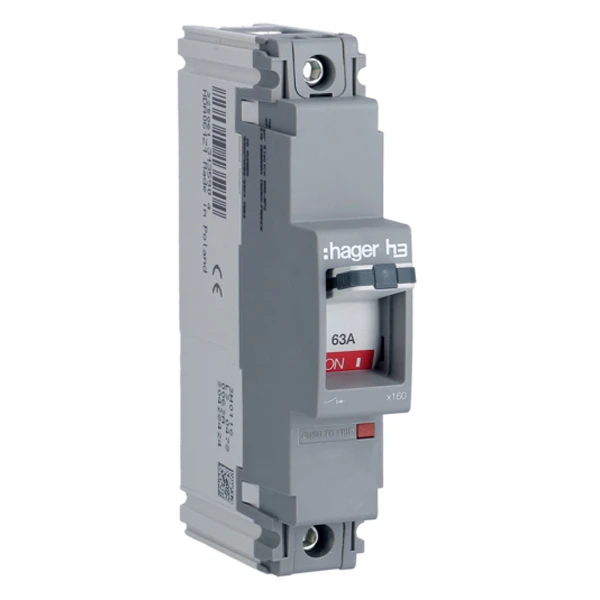

Hager MCCB Single Pole 63A 18kA Fixed Thermal Magnetic

Brand: HagerProduct code: HDA061ZGo Magpie Ref: 5060062354760

Hager Moulded Case Circuit Breaker has thermal magnetic trip unit with fixed thermal and fixed magnetic. Circuit breaker has access to a mechanical test button on the cover, which is also lockable to ensure that the MCCB settings are protected. Moulded case circuit breaker can be mounted on DIN rail with help of accessory. There is a connection capacity of 95mm² for rigid cables and 70mm² for flexible cables. · · · Easy to Install and safe to use · · Integrated padlocking handle Ø 4mm · · Time Saving · · Comply with IEC 60 947-2 standard

£160.87inc VAT£134.06 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Type of control element Rocker lever Type of electrical connection of main circuit Screw connection Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 18 kA Device construction Complete device in housing Number of poles 1 Rated permanent current Iu 63 A Rated voltage 220 – 240 V Overload release current setting 63 – 63 A Suitable for DIN rail (top hat rail) mounting Yes · Technical Data Sheet – Click to Download
