Hager MCCB SP 100A 25Ka Fixed Thermal Magnetic
Hager MCCB SP 100A 25Ka Fixed Thermal Magnetic
Hager MCCB SP 100A 25Ka Fixed Thermal Magnetic - Image 2

Hager MCCB SP 100A 25Ka Fixed Thermal Magnetic

£182.92 Incl. VAT

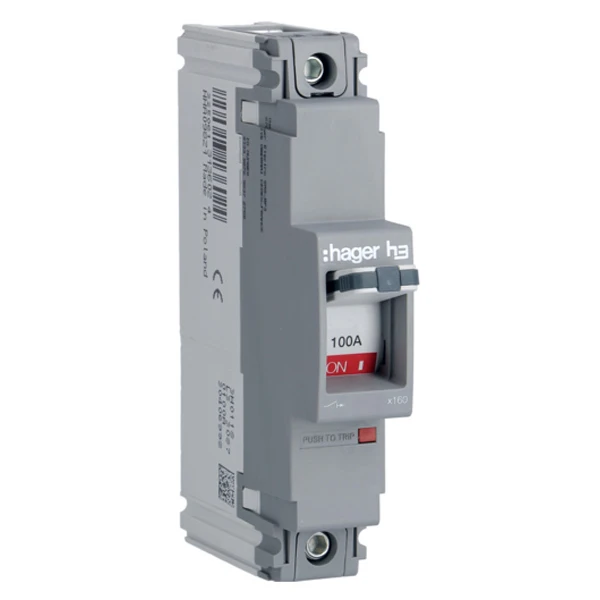

Hager Moulded Case Circuit Breaker has thermal magnetic trip unit with fixed thermal and fixed magnetic. Circuit breaker has access to a mechanical test button on the cover, which is also lockable to ensure that the MCCB settings are protected. Moulded case circuit breaker can be mounted on DIN rail with help of accessory. There is a connection capacity of 95mm² for rigid cables and 70mm² for flexible cables. · · · Easy to Install and safe to use · · Integrated padlocking handle Ø 4mm · · Time Saving · · Comply with IEC 60 947-2 standard

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: HHA098Z Categories: , , Brand: Product Code: 2500365919

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Type of control element Rocker lever Device construction Complete device in housing Rated permanent current Iu 100 A Type of electrical connection of main circuit Screw connection Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA Number of poles 1 Suitable for DIN rail (top hat rail) mounting Yes Rated voltage 220 – 240 V
