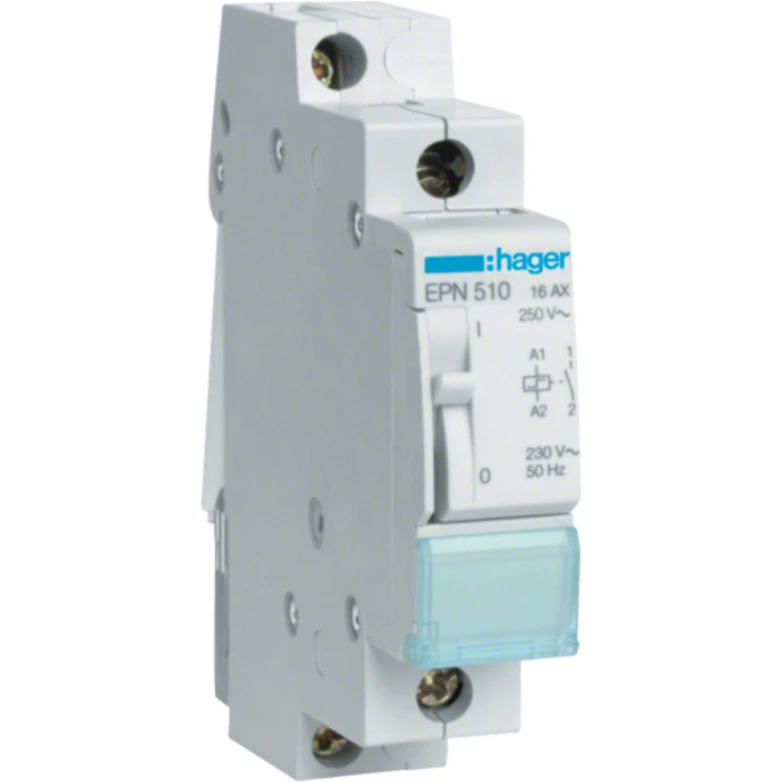

Hager Relay 1No Latching 16A 230V 50Hz
Hager Relay 1No Latching 16A 230V 50Hz
Hager Relay 1No Latching 16A 230V 50Hz - Image 2

Hager Relay 1No Latching 16A 230V 50Hz

£47.11 Incl. VAT

Hager Latching Relays operate when impulsed by a signal voltage. The impulse can be provided via a pushbutton or pushswitch. The first pulse operates the relay and latches it to its set (opposite) state, the next operation of the pushbutton returns the relay to its reset (original) state. · · · 1 Normally Open Contact · · 16 Amp · · 230V 50Hz · · 1 Module · · Auxiliary contacts EPN050 & EPN051 are available for remote signalling and centralised control applications and can be easily combined with the latching relays. · · Connection: 10mm flexible, 6mm rigid · · Type of connection with screw · · IP20 protection rating

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EPN510 Category: Brand: Product Code: 2500190281

Description

Technical Specifications  Technical Specifications Latching relay Function Mechanical switch Type of control voltage 2 DC Type of control voltage 1 AC Mounting method DIN rail Rated switch current 16 A Max. switching current (cos phi = 0.6) 16 A Recess depth 63 mm Width in number of modular spacings 17.5 Control voltage 2 110 – 110 V Supply voltage 250 – 250 V Control voltage 1 230 – 230 V Frequency control voltage 2 50 – 60 Hz Frequency control voltage 1 50 – 60 Hz
