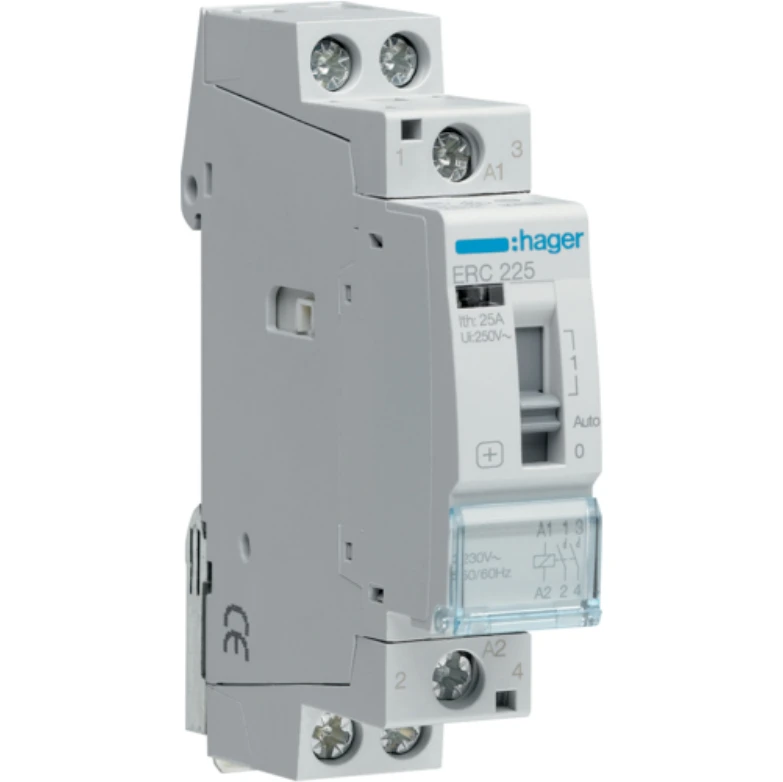

Hager Relay 2No 25A 230V
Hager Relay 2No 25A 230V
Hager Relay 2No 25A 230V - Image 2

Hager Relay 2No 25A 230V

£68.46 Incl. VAT

Hager Standard Contactor with screw connection. The contactor ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating. The choice of contactor depends upon a number of parameters that is nature of the supply, power it is switching, characteristics of the load, control voltage required and the number of operations. · · · 25 Amp · · 2 Normally Open Contacts · · 230V 50Hz · · 1 Module · · The use of LZ060 (heat dissipation inserts) between all contactors installed or between contactors and adjacent devices is required. · · Contactors will accept auxiliary, ESC080 contact · · Connection Capacity: Rigid conductor 10mm, Flexible conductor 6mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ERC225 Category: Brand: Product Code: 2500477202

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating AC Type of electrical connection of main circuit Screw connection Rated operation power at AC-3, 400 V 0 kW Number of auxiliary contacts as normally open contact 0 Number of main contacts as normally open contact 2 Number of auxiliary contacts as normally closed contact 0 Rated operation current Ie at AC-3, 400 V 8.5 A Rated operation current Ie at AC-1, 400 V 25 A Rated control supply voltage at DC 0 – 0 V Number of normally closed contacts as main contact 0 Rated control supply voltage at AC 60 Hz 230 – 230 V Rated control supply voltage at AC 50 Hz 230 – 230 V Modular version Yes
