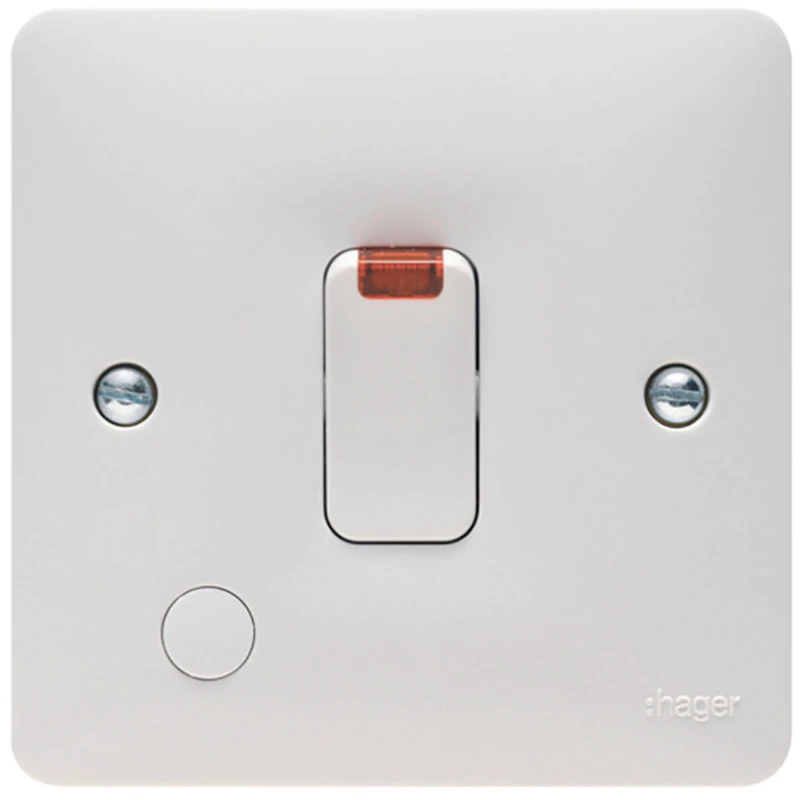

Hager Sollysta WMDP84FO 1 Gang Double Pole Flex Outlet Switch 20A
£5.40 Incl. VAT
The Sollysta white moulded wiring accessory range is one of the easiest on the market to install with the shallowest back projection offering more cabling space. Behind the faceplate the terminals face in the same direction with lead-ins for wiring, backed off screws held captive to prevent loss, wire end stops and clear white labelling off a dark grey background. The wall switches are also the market’s first with a neutral loop terminal built into the accessory. This allows the installer to complete the loop connection in the switch instead of in the ceiling rose. · · · BS 1363-4 · · Cable clamp accommodates up to 1.5mm² flexible cord · · Single screw fast fix cable clamp · · Terminal screws upward facing · · Clearly printed terminal markings · · 2 x 6mm² terminal capacity · · Supplied with M3.5 x 30mm fixing screws
44 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch Wiring system 2-pole switch Connection type Screwed terminal Type of fastening Screw mounting Method of operation Rocker Mounting method Surface mounted Assembly Basic unit Colour of rocker/switch operator White Colour White Degree of protection (IP rating) IP66 Number of module spaces (modular system) 1 Rated current 20 A
