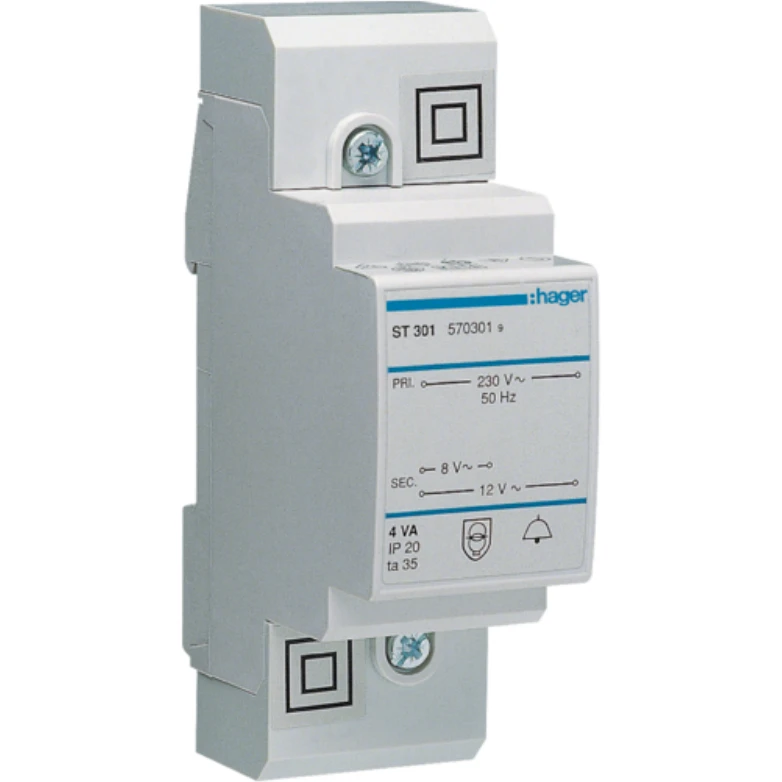

Hager Transformer Bell 4Va

Description

Technical Specifications  Technical Specifications Bell transformer Type of transformer Standard bell ringing transformer Width 35 mm Height 111 mm Maximum output current 0.5 A Length 65 mm Width in number of modular spacings 2 Secondary amperage 2 0.33 A Secondary amperage 1 0.5 A Secondary voltage 1 8 V Max. power loss 1.8 W Max. output power 4 W Secondary voltage 2 12 V Primary voltage 230 V Temperature protection Yes Short-circuit protected Yes Modular version Yes
