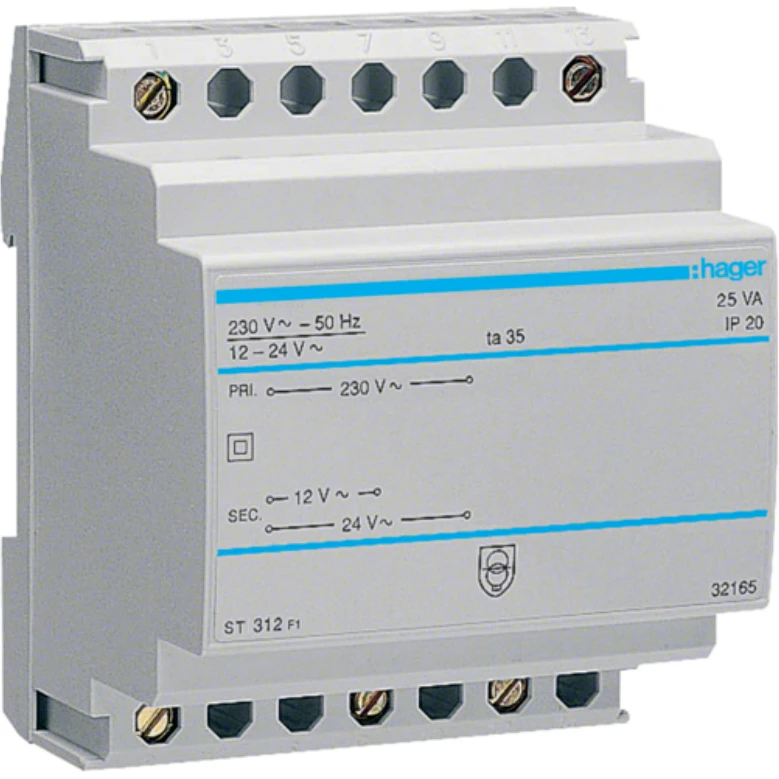

Hager Transformer Safety 25Va

Description

Technical Specifications  Technical Specifications Bell transformer Type of transformer Safety transformer Width 70 mm Height 85 mm Length 58 mm Maximum output current 2.08 A Max. power loss 1.75 W Secondary voltage 2 24 V Width in number of modular spacings 4 Secondary amperage 2 1.04 A Max. output power 25 W Secondary voltage 1 12 V Secondary amperage 1 2.08 A Primary voltage 230 V Temperature protection Yes Short-circuit protected Yes Modular version Yes
