Domestic Consumer Units

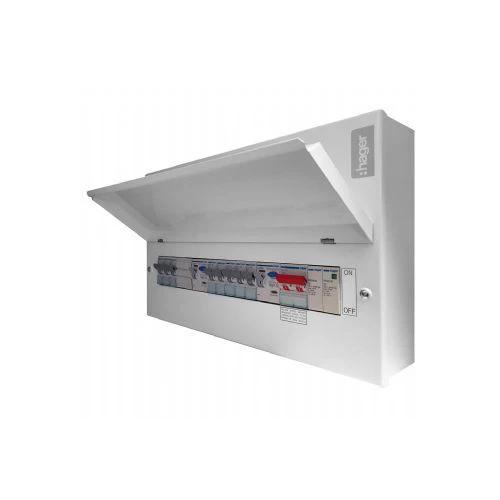

Hager Consumer Unit 10 Way High Integrity Twin RCCB Surge Protection Device 100A 2 x 100

Brand: HagerProduct code: VML910CUSPDRKGo Magpie Ref: 5060062296432

Hager Design 10 Consumer High Integrity with Surge Protection, Design 10 is the entry level board designed for all applications. As with both models in the range, there is ample cable space available even when RCBOs are fitted. The top mounted terminal rai · · · 10 Way · · 100 Amp Main Switch · · 2 x 100 Amp 30mA RCCB · · Supplied with a full metal DIN rail · · Full complement of earth and neutral terminals along with marking labels · · All Design 10 boards contain top, bottom & rear knockouts · · Conforms to BS EN 61439-3 Including Annex ZB (16kA rating) · · IP2XC rated

£92.40inc VAT£77.00 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board equipped Cooker group None Housing material Steel Degree of protection (IP rating) IP2XC Mounting method Surface mounted Width 406 mm Height 246 mm Depth 83 mm Main switch rated current 100 A Lockable Yes Number of outgoing ways 10 · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
