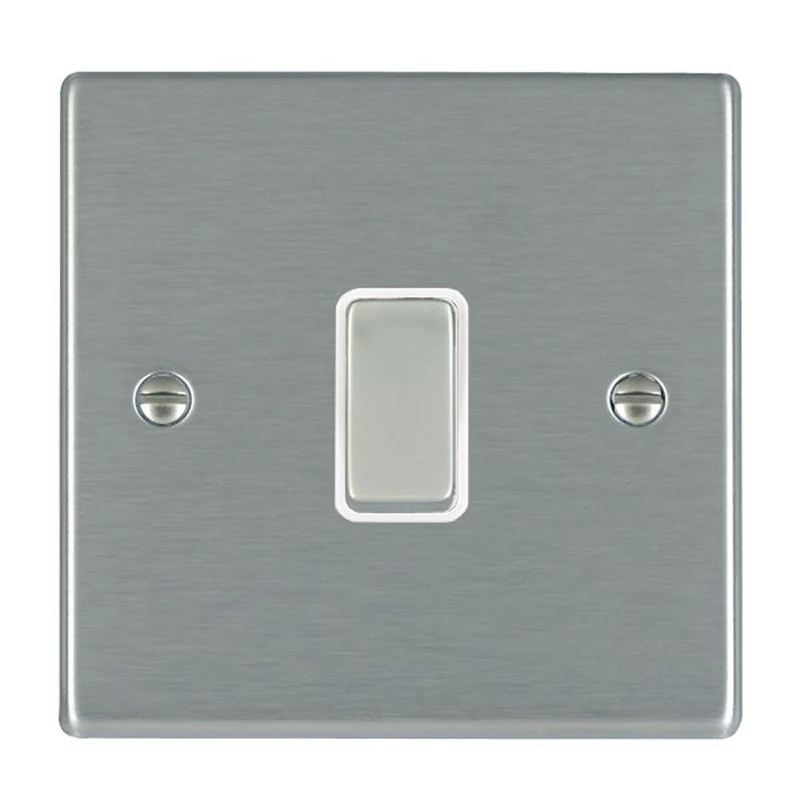

Hamilton Switch 1 Gang DP 20A 88X88mm Satin Steel/Satin Steel White Insert
Awaiting product image

Hamilton Switch 1 Gang DP 20A 88X88mm Satin Steel/Satin Steel White Insert

£18.66 Incl. VAT

Hamilton Hartland Rocker Switch with satin stainless finish and rocker control. This product range of sleek and stylish accessory with slim front plate to complement today’s interiors. This attractive range is available in nine elegant finishes with complementary switch insert finish. Designed to fit folded metal wall box enclosures that comply with BS 4662:2006. Must be earthed. Internal Use Only. · · · Single – Nominal Dimensions H: 88.0mm W: 88.0mm D: 5.0mm – Box Fixing Hole Centers: 60.3mm · · Generic Size: Single · · Switched Poles: Double · · Current Rating: 20AX · · Voltage: 220/250V AC · · Maximum Load 20 Amp inductive · · Mains Frequency: 50Hz · · IP Rating: IP2XD · · Standard/Approval: BS EN 60669-1 · · Insert Finish/Surround Colour: Satin Steel/White – Plate Finish: Satin Steel

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 74DPSS-W Categories: , , , , , Brand: Product Code: 2500138759

Description

Technical Specifications  Technical Specifications Switch Wiring system 2-pole switch Method of operation Rocker Mounting method Flush mounted Assembly Basic unit with full cover plate Rated current 20 A Illumination No Height of device 88 mm Number of module spaces (modular system) 1 Depth of device 35 mm Width of device 88 mm
