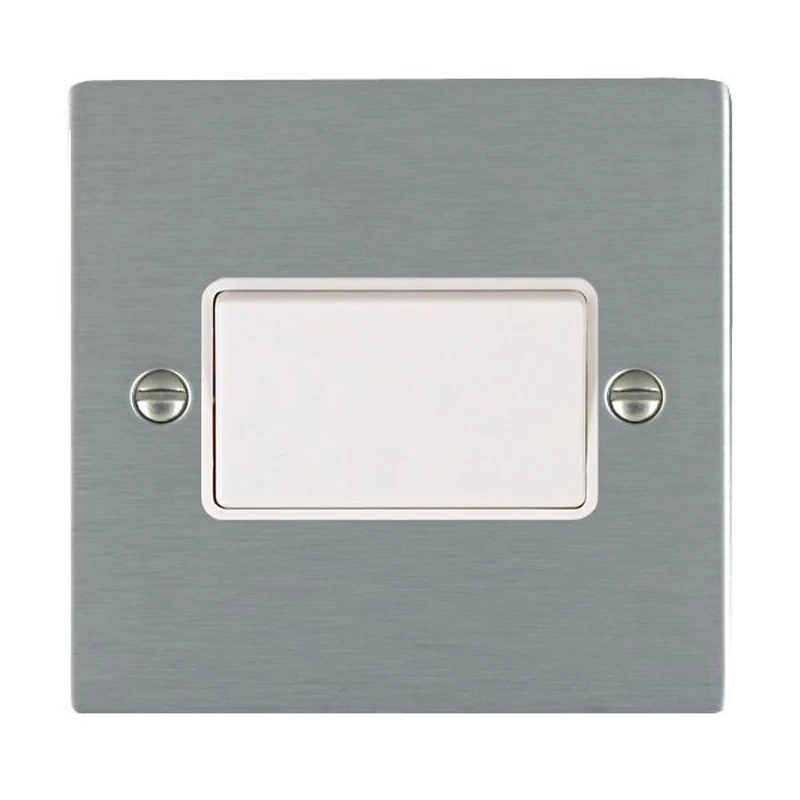

Hamilton Switch Rocker 1 Gang TP 86X86mm Satin Steel White Insert
Hamilton Sheer Rocker Switch with satin stainless finish, meld seamlessly into modern interiors. This modern and elegant range is available in nine fantastic finishes and by mixing box fix with grid and concealed fixing in this range, allows it to be very flexible for different areas of a project and costs can be minimized without losing continuity of design. Must be earthed. Internal Use Only. · · · Single – Nominal Dimensions H: 86.0mm W: 86.0mm D: 1.5mm – Box Fixing Hole Centers: 60.3mm · · Generic Size: Single · · Switched Poles: Triple · · Current Rating: 10A · · Voltage: 220/250V AC · · Maximum Load 10 Amp resistive · · Mains Frequency: 50Hz · · IP Rating: IP2XD · · Standard/Approval: BS EN 60669-1 · · Insert Finish/Surround Colour: White/White – Plate Finish: Satin Steel
Description
Technical Specifications Technical Specifications Switch Method of operation Rocker Mounting method Flush mounted Assembly Basic unit with full cover plate Illumination No Wiring system 3-pole switch Rated current 10 A Number of module spaces (modular system) 1 Width of device 86 mm Height of device 86 mm Depth of device 25 mm
