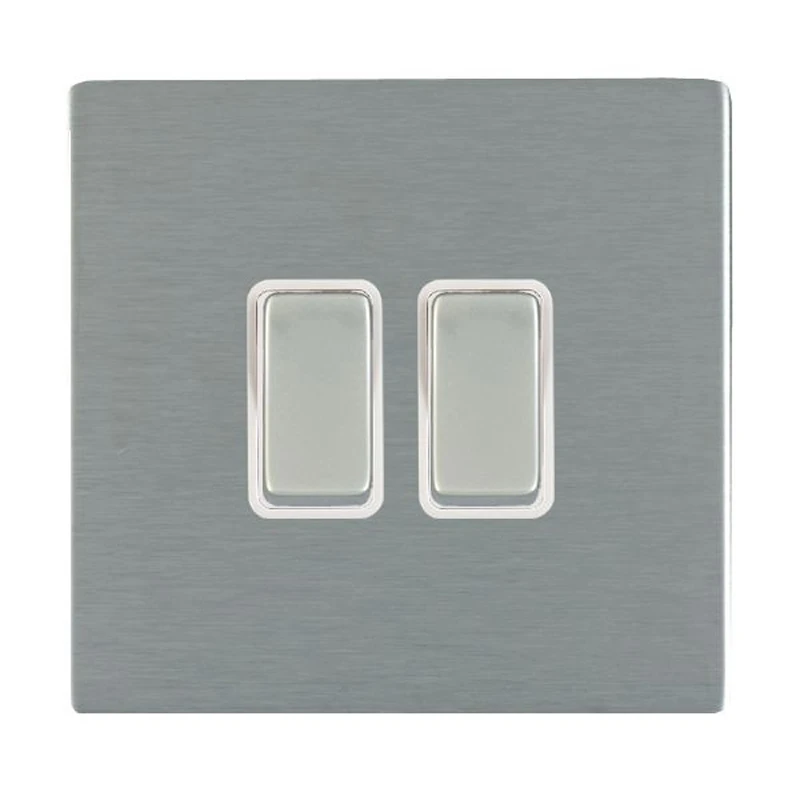

Hamilton Switch Rocker 2 Gang 2 Way 10A 86X86mm Satin Steel White Insert
Awaiting product image

Hamilton Switch Rocker 2 Gang 2 Way 10A 86X86mm Satin Steel White Insert

£32.46 Incl. VAT

Hamilton Sheer CFX Rocker Switch is simple and elegant, flat-plate switch. This product range features 4 point face plate clipping system allowing concealed fixing for a clean and contemporary finish that looks stylish in any environment. Also benefits from an integral gasket that forms part of the mounting frame, this is ideal for use on walls that are not perfectly flat. Must be earthed. Internal Use Only. · · · Single – Nominal Dimensions H: 86.0mm W: 86.0mm D: 1.5mm plate + 3.0mm gasket – Box Fixing Hole Centers: 60.3mm · · Generic Size: Single · · Switched Poles: Single · · Current Rating: 10AX · · Voltage: 220/250V AC · · Maximum Load 10 Amp inductive · · Mains Frequency: 50Hz · · IP Rating: IP2XD · · Standard/Approval: BS EN 60669-1 · · Insert Finish/Surround Colour: Satin Steel/White – Plate Finish: Satin Steel

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 84CR22SS-W Categories: , , , Brand: Product Code: 2500177698

Description

Technical Specifications  Technical Specifications Switch Method of operation Rocker Wiring system Two-way switch Mounting method Flush mounted Assembly Basic unit with full cover plate Illumination No Rated current 10 A Number of module spaces (modular system) 2 Depth of device 25 mm Width of device 86 mm Height of device 86 mm
