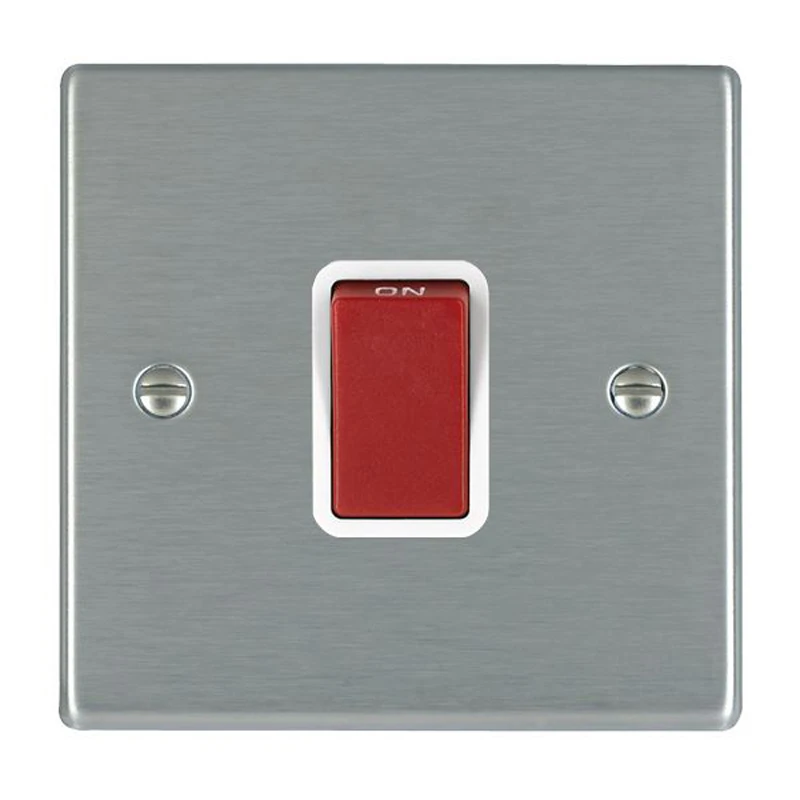

Hamilton Switch Rocker Red 1 Gang DP 45A 88X88mm Satin Steel White Insert
Hamilton Switch Rocker Red 1 Gang DP 45A 88X88mm Satin Steel White Insert
Hamilton Switch Rocker Red 1 Gang DP 45A 88X88mm Satin Steel White Insert - Image 2

Hamilton Switch Rocker Red 1 Gang DP 45A 88X88mm Satin Steel White Insert

£33.29 Incl. VAT

Hamilton Hartland Rocker Switch with satin stainless finish. This product range of sleek and stylish accessory with slim front plate to complement today’s interiors. This attractive range is available in nine elegant finishes with complementary switch insert finish. Must be earthed. Internal Use Only. · · · Single – Nominal Dimensions H: 88.0mm W: 88.0mm D: 5.0mm – Box Fixing Hole Centers: 60.3mm · · Generic Size: Single · · Switched Poles: Double · · Current Rating: 45 Amp · · Voltage: 220/250V AC · · Maximum Load 45 Amp · · Mains Frequency: 50Hz · · IP Rating: IP2XD · · Standard/Approval: BS EN 60669-1 · · Insert Finish/Surround Colour: Red/White – Plate Finish: Satin Steel

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 7445W Categories: , , , Brand: Product Code: 2500138686

Description

Technical Specifications  Technical Specifications Switch Wiring system 2-pole switch Method of operation Rocker Assembly Basic unit with full cover plate Mounting method Flush mounted Number of module spaces (modular system) 1 Illumination No Height of device 88 mm Rated current 45 A Width of device 88 mm Depth of device 35 mm
