Hamilton Switch Rocker Red 1 Gang Dp+Neon 45A 85X145mm Satin Steel Black Insert
£41.54 Incl. VAT

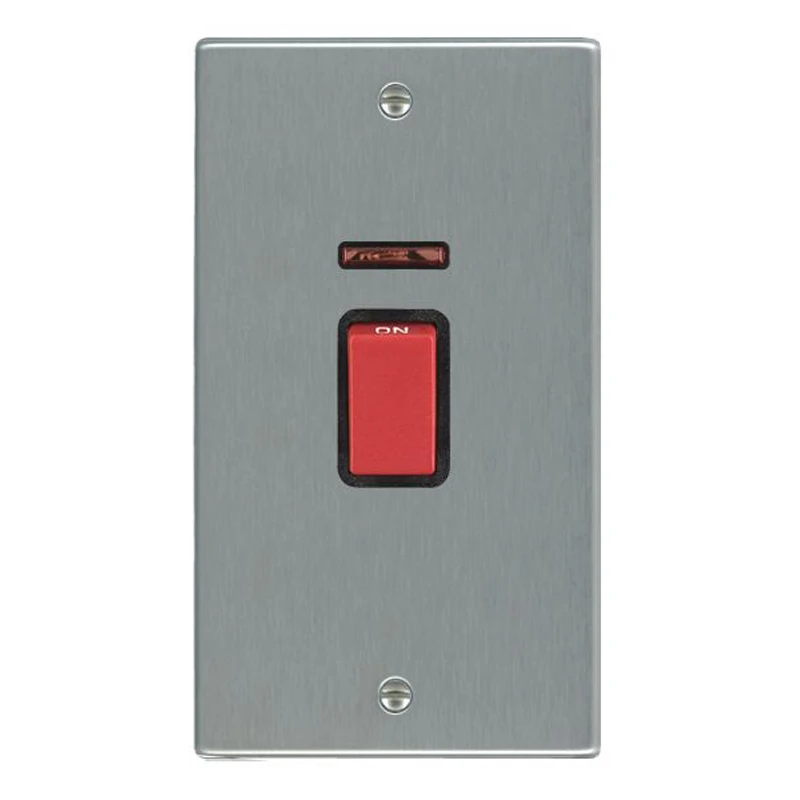

Hamilton Hartland Rocker Switch with red button and neon. This product range of sleek and stylish accessory with slim front plate to complement today’s interiors. This attractive range is available in nine elegant finishes with complementary switch insert finish. Must be earthed. Internal Use Only. Must be mounted vertically. · · · Double – Nominal Dimensions H: 144.5mm W: 88.0mm D: 5.0mm – Box Fixing Hole Centers: 120.6mm · · Generic Size: Double · · Switched Poles: Double · · Current Rating: 45 Amp · · Voltage: 220/250V AC · · Maximum Load 45 Amp · · Mains Frequency: 50Hz · · IP Rating: IP2XD · · Standard/Approval: BS EN 60669-1 · · Insert Finish/Surround Colour: Red/Black – Plate Finish: Satin Steel
Description
Technical Specifications Technical Specifications Switch Wiring system 2-pole switch Method of operation Rocker Illumination Yes Mounting method Flush mounted Assembly Basic unit with full cover plate Number of module spaces (modular system) 1 Rated current 45 A Depth of device 35 mm Height of device 144 mm Width of device 85 mm
