Harting 09300061440 Hood

£14.72 Incl. VAT

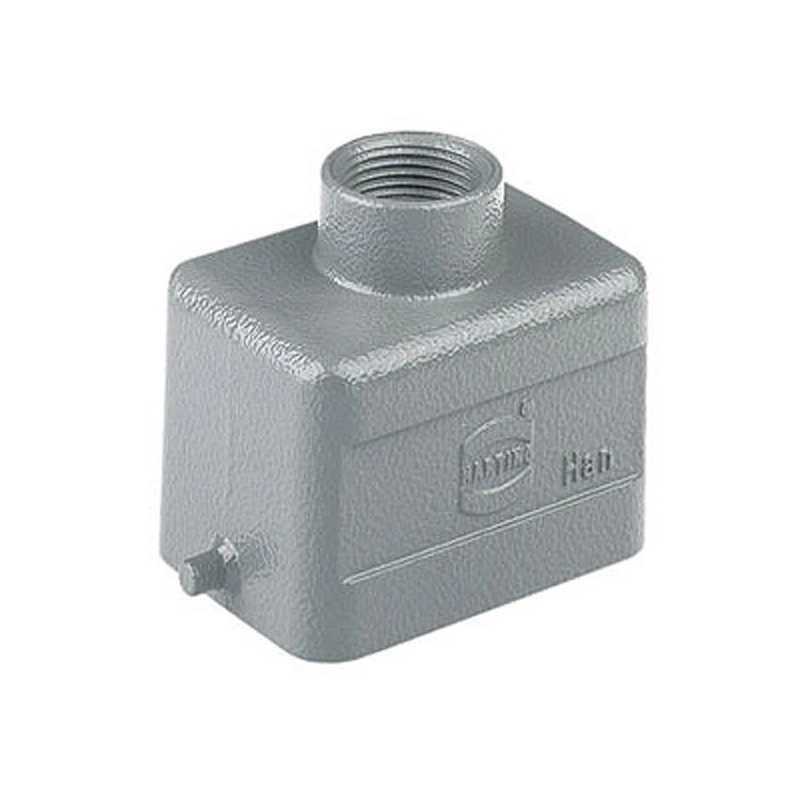

Harting 09 30 006 1440 Han B top entry metal hood is made up of polycarbonate + stainless steel, NBR seal, aluminium die-cast housing. The surface of housing is powder-coated. It supports NEMA type 4/4X/12 protection class according to UL 50, IP65 degree of protection according to DIN EN 60 529. RAL 7037 (grey) in colour. · · · Colour: Grey, Finish: Powder Coated · · Height: 53.5mm · · Length: 73mm · · Material: Polycarbonate + Stainless Steel · · Range: Han B · · Size: 6B · · Width: 73mm · · Weight: 100.1g · · Depth: 43mm · · IP Rating: IP65

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 9300061440 Category: Brand: Product Code: 1050101109

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Type of locking Single locking lever Position of the shackle Base unit Position cable feed Above Degree of protection (IP), mounted IP65 Housing material Aluminium Type of housing Plug case Width 73 mm Height 53.5 mm Operating temperature -40 – 125 °C Corrosion resistant No With cable screw gland No With hinged lid No EMC-version No
