Harting Hood Top Entry Low 1 X M25 Thread
Awaiting product image

Harting Hood Top Entry Low 1 X M25 Thread

£26.75 Incl. VAT

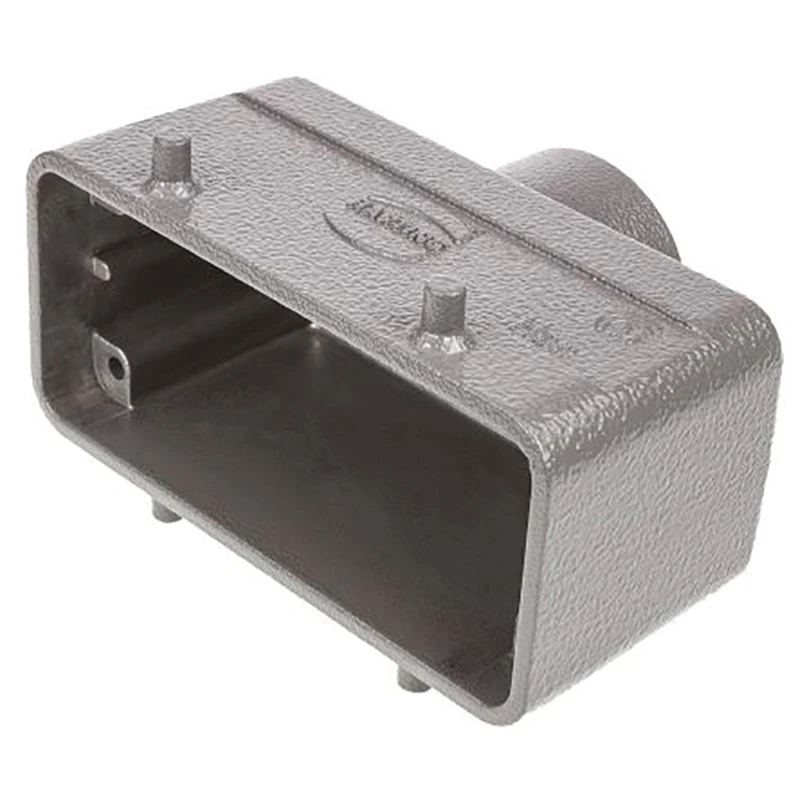

Harting top entry hood made up of a powder-coated Aluminium die-cast material. Hood is suitable for several industrial applications. · · · Locking type: Double locking lever · · 1x M25 cable gland · · Size: 16B · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · RoHS compliant · · Low construction type

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 19300161421 Brand: Product Code: 1050318392

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Position cable feed Above Degree of protection (IP), mounted IP65 Position of the shackle Base unit Coating housing Powder coating Housing material Aluminium Shape Rectangular Housing colour Grey Type of housing Plug case Mounting method of the cable gland None Type of locking Double locking levers Width 93.5 mm Depth 57.2 mm Weight 143.6 g Height 61 mm Length 43 mm Operating temperature -40 – 125 °C UV resistant Yes With hinged lid No With cable screw gland No EMC-version No Corrosion resistant No With interlocking device Yes
