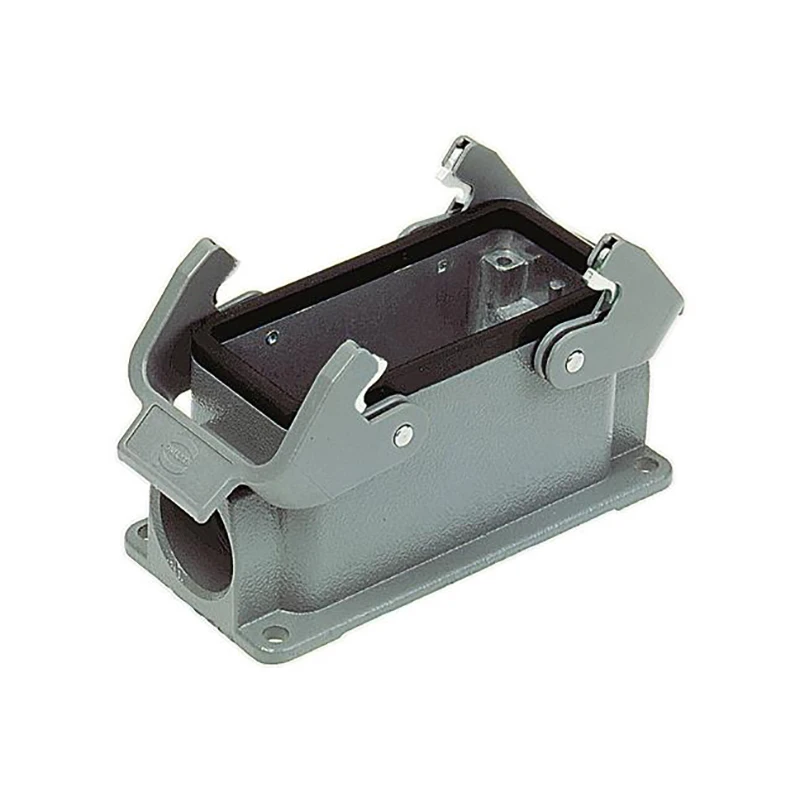

Harting Panel Mount Base
£32.12 Incl. VAT
Harting side entry surface mounted housing made up of powder-coated Aluminium die-cast material body with polycarbonate and stainless steel locking. Housing is suitable for several industrial applications. · · · Locking type: Double locking lever · · 1x M25 cable gland · · Size: 16B · · Han-Easy Lock included · · NBR seal · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · RoHS compliant · · Low construction type · · Flammability acc. to UL 94: V-0
Out of Stock
Description
Technical Specifications Technical Specifications Housing for industrial connectors Position of the shackle Base unit Inflammability class of insulation material acc. with UL94 V0 Degree of protection (IP), mounted IP65 Housing material Aluminium Coating housing Powder coating Housing colour Grey Type of locking Double locking levers Shape Rectangular Type of housing Socket case Mounting method of the cable gland Metric Position cable feed Sideways Number of conduit inlets 2 Depth 57 mm Width 117 mm Weight 281.8 g Height 55.8 mm Number of openings 2 Length 57 mm Operating temperature -40 – 125 °C UV resistant Yes EMC-version No With cable screw gland No With hinged lid No Corrosion resistant No With interlocking device Yes
