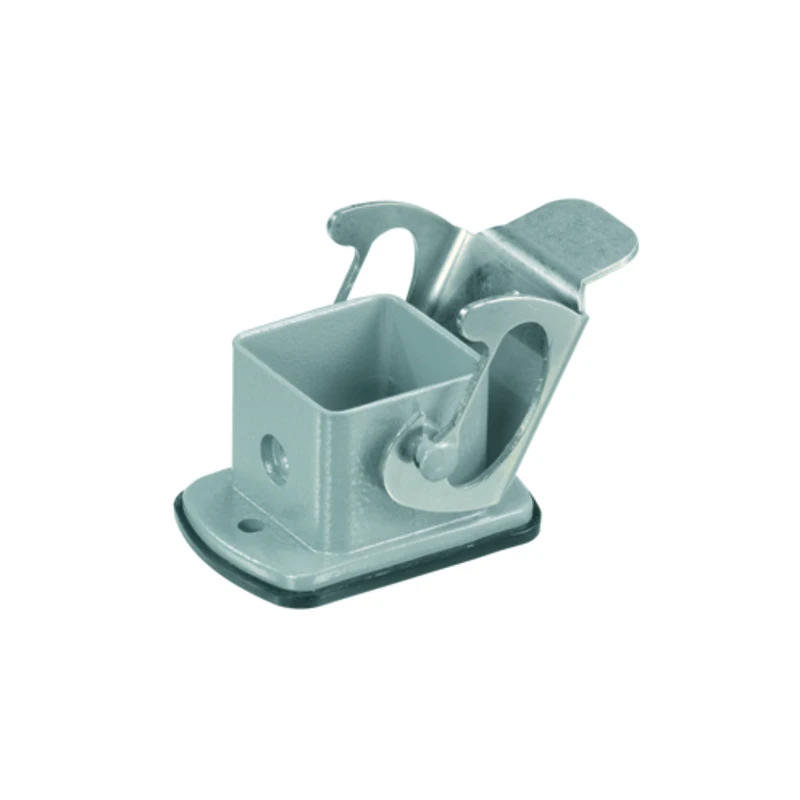

HDC 04A ALU Bulkhead Enclosure Size 1
HDC 04A ALU Bulkhead Enclosure Size 1
HDC 04A ALU Bulkhead Enclosure Size 1 - Image 2

HDC 04A ALU Bulkhead Enclosure Size 1

£9.72 Incl. VAT

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: Side-locking clamp (lower side) · · NBR seal · · Mounting dimension: 30mm width · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug® · · Depth: 60mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1497600000 Categories: , , Brand: Part Number: 2500184919

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Mounting method of the cable gland None Housing colour Grey Coating housing Powder coated Position cable feed Below Position of the shackle Base unit Degree of protection (IP), mounted IP65 Type of housing Housing extension Housing material Aluminium Number of openings 1 Operating temperature -40 – 125 °C Height 47.3 mm Length 60.5 mm Depth 36.5 mm Width 60.5 mm UV resistant Yes With hinged lid No With cable screw gland No With interlocking device Yes EMC-version No Corrosion resistant Yes With sealing Yes · Technical Data Sheet – Click to Download
