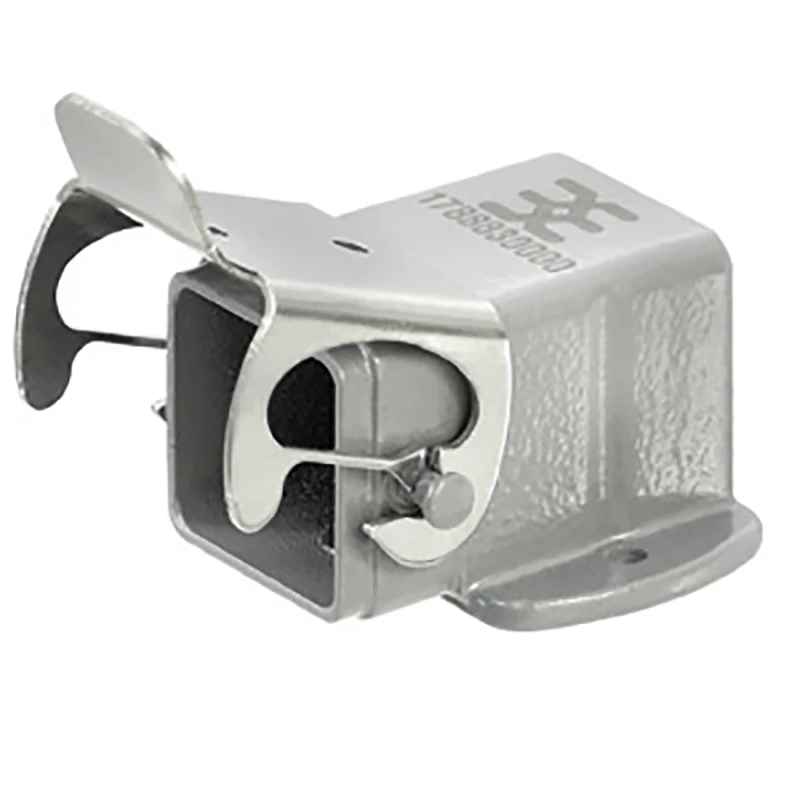

Weidmuller HDC 04A SLU Side Entry Base Enclosure PG11 Size 1
£11.17 Incl. VAT
Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: Side-locking clamp (lower side) · · 1 Cable entry on side · · PG11 Internal thread · · Mounting dimension: 30mm width · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug®
Description
Technical Specifications Technical Specifications Housing for industrial connectors Housing colour Grey Mounting method of the cable gland PG Position of the shackle Base unit Type of housing Socket case Position cable feed Below Coating housing Powder coated Degree of protection (IP), mounted IP65 Housing material Aluminium Width 65.5 mm Height 52.8 mm Number of openings 1 Depth 36.5 mm With hinged lid No With sealing Yes Operating temperature -40 – 125 °C · Technical Data Sheet – Click to Download
