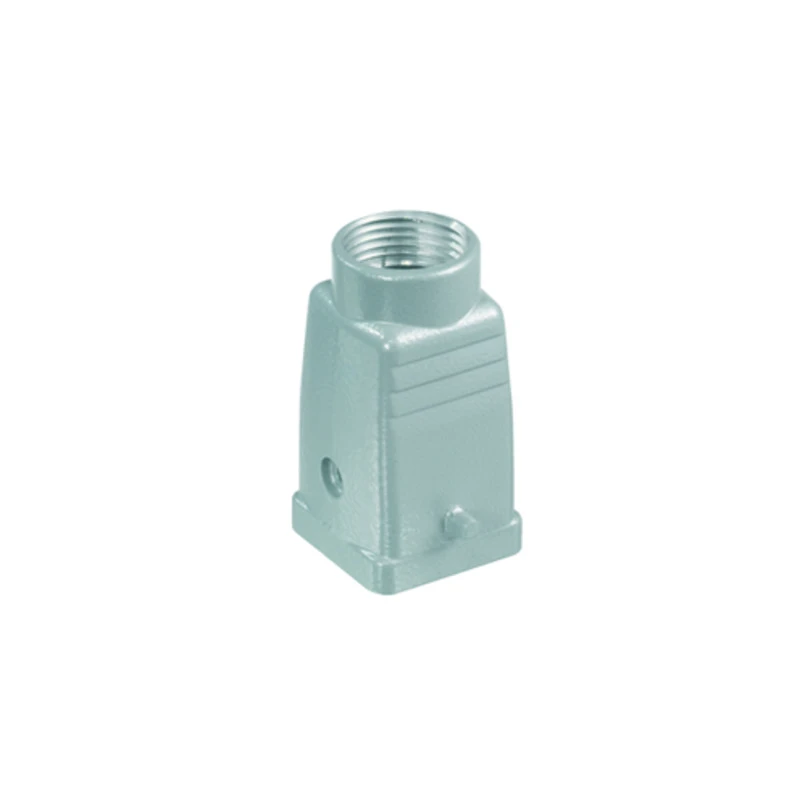

HDC 04A TOLU Top Entry Enclosure M20 Size 1

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: Side-locking clamp (lower side) · · 1 Cable entry on top · · M20 Internal thread · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug® · · Minimum switching current/voltage: 5mA/17V · · Non-overlap time: 1.5ms (energisation/de-energisation) · · Ambient operating temperature: -5°C to 60°C · · IP2x Degree of protection
