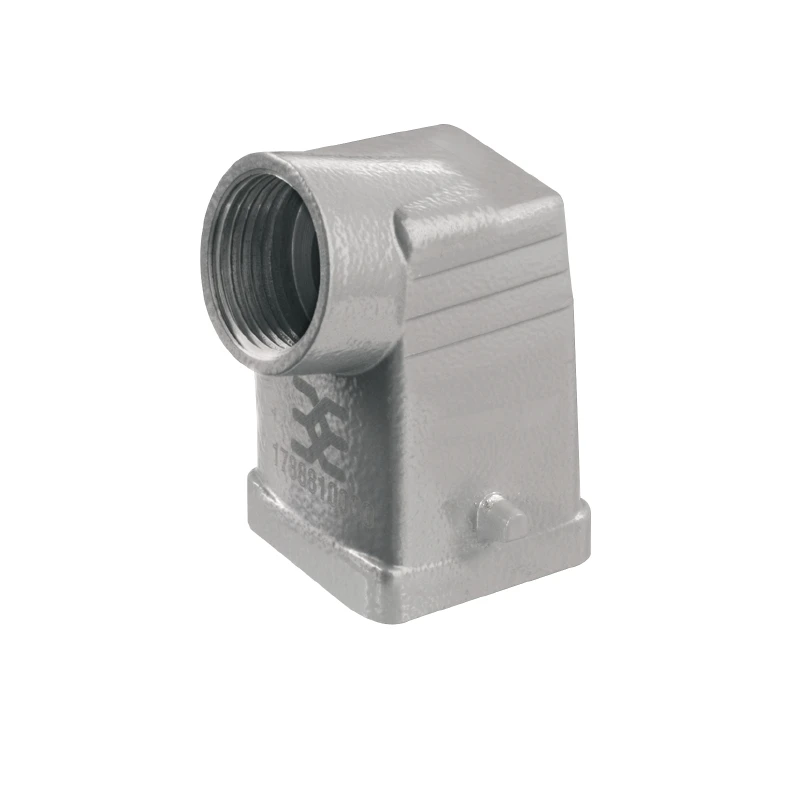

HDC 04A TWLU Side Entry Enclosure M20 Size 1
HDC 04A TWLU Side Entry Enclosure M20 Size 1
HDC 04A TWLU Side Entry Enclosure M20 Size 1 - Image 2
HDC 04A TWLU Side Entry Enclosure M20 Size 1 - Image 3

HDC 04A TWLU Side Entry Enclosure M20 Size 1

£7.00 Incl. VAT

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: Side-locking clamp (lower side) · · 1 Cable entry on side · · M20 Internal thread · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug® · · Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. · · 2 knock-outs for PG 13 cable gland · · ISO M20

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1788810000 Categories: , , Brand: Part Number: 2500628839

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Housing colour Grey Position cable feed Sideways Mounting method of the cable gland Metric Coating housing Powder coated Position of the shackle Base unit Degree of protection (IP), mounted IP65 Type of housing Plug case Housing material Aluminium Width 37.3 mm Height 49.2 mm Depth 36.5 mm Number of conduit inlets 1 Number of openings 1 Operating temperature -40 – 125 °C UV resistant Yes · Technical Data Sheet – Click to Download
