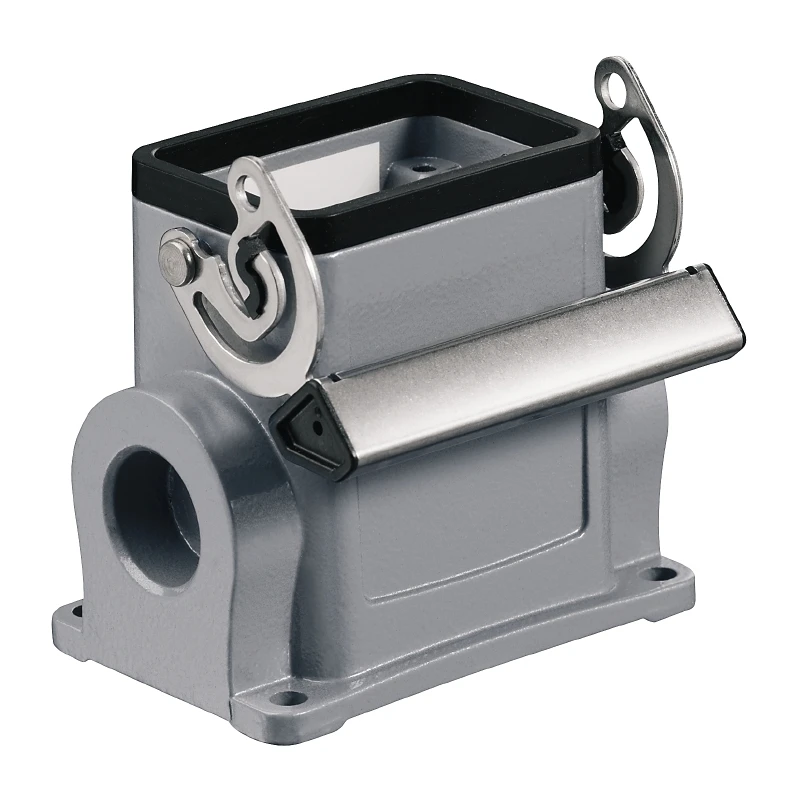

Weidmuller HDC 06B SLU Side Entry Base Enclosure PG16 Size 3
Weidmuller HDC 06B SLU Side Entry Base Enclosure PG16 Size 3
Weidmuller HDC 06B SLU Side Entry Base Enclosure PG16 Size 3 - Image 2
Weidmuller HDC 06B SLU Side Entry Base Enclosure PG16 Size 3 - Image 3

Weidmuller HDC 06B SLU Side Entry Base Enclosure PG16 Size 3

£15.36 Incl. VAT

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: End-locking clamp (lower side) · · 1 Cable entry on side · · PG16 Internal thread · · NBR seal · · Mounting dimension: 70mm width · · Mounting dimension: 40mm height · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug®

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1652750000 Categories: , , Brand: Product Code: 2500185360

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Housing colour Grey Position cable feed Sideways Mounting method of the cable gland PG Type of housing Socket case Position of the shackle Base unit Degree of protection (IP), mounted IP65 Housing material Aluminium Coating housing Powder coated Height 54 mm Width 82 mm Depth 71.7 mm Number of conduit inlets 1 Number of openings 1 Operating temperature -40 – 125 °C With hinged lid No With sealing Yes · Technical Data Sheet – Click to Download
