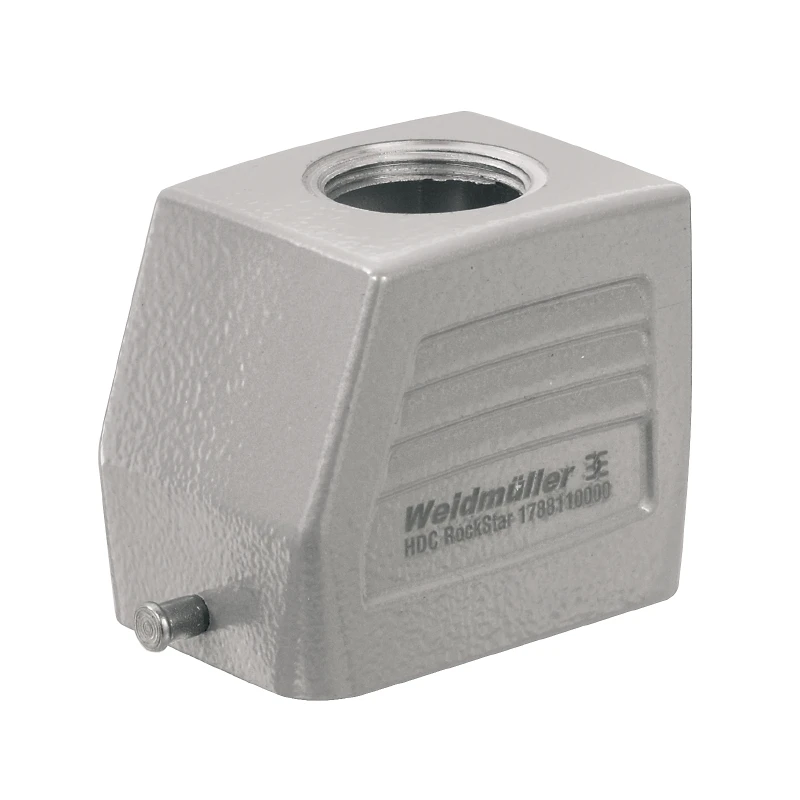

HDC 06B TOLU Top Entry Enclosure M20 Size 3

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: End-locking clamp (lower side) · · 1 Cable entry on top · · M20 Internal thread · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug® · · Compliance with standards: EN 61095 and CEI 1095 · · Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B · · The maximum switching operations is 6 per minute. · · The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV.
