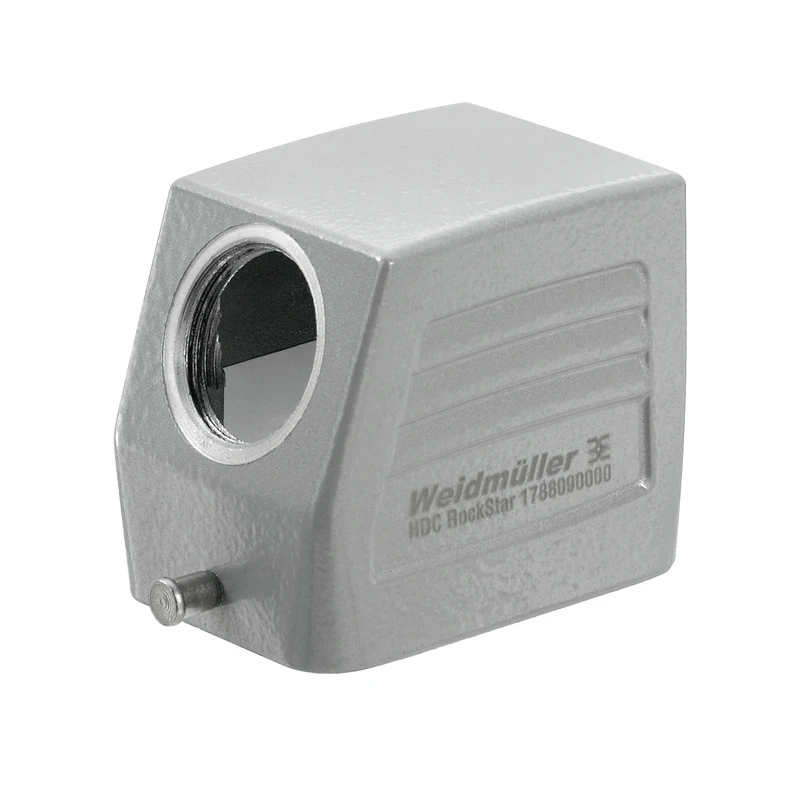

HDC 06B TSLU Side Entry Enclosure M20 Size 3
£9.59 Incl. VAT
Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: End-locking clamp (lower side) · · 1 Cable entry on side · · M20 Internal thread · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug® · · Minimum switching current/voltage: 5mA/17V · · Non-overlap time: 1.5ms (energisation/de-energisation) · · Ambient operating temperature: -5°C to 60°C · · IP2x Degree of protection
Out of stock
Description
Technical Specifications Technical Specifications Housing for industrial connectors Mounting method of the cable gland None Position cable feed Sideways Housing colour Grey Coating housing Powder coated Position of the shackle Base unit Type of housing Plug case Height 52 mm With cable screw gland No Operating temperature -40 – 125 °C Length 75 mm Depth 75 mm Width 43 mm Degree of protection (IP), mounted IP65 Housing material Aluminium With interlocking device Yes Corrosion resistant Yes UV resistant Yes EMC-version No With hinged lid No · Technical Data Sheet – Click to Download
