HDC 10B ABU Bulkhead Enclosure Size 4
HDC 10B ABU Bulkhead Enclosure Size 4
HDC 10B ABU Bulkhead Enclosure Size 4 - Image 2

HDC 10B ABU Bulkhead Enclosure Size 4

£14.75 Incl. VAT

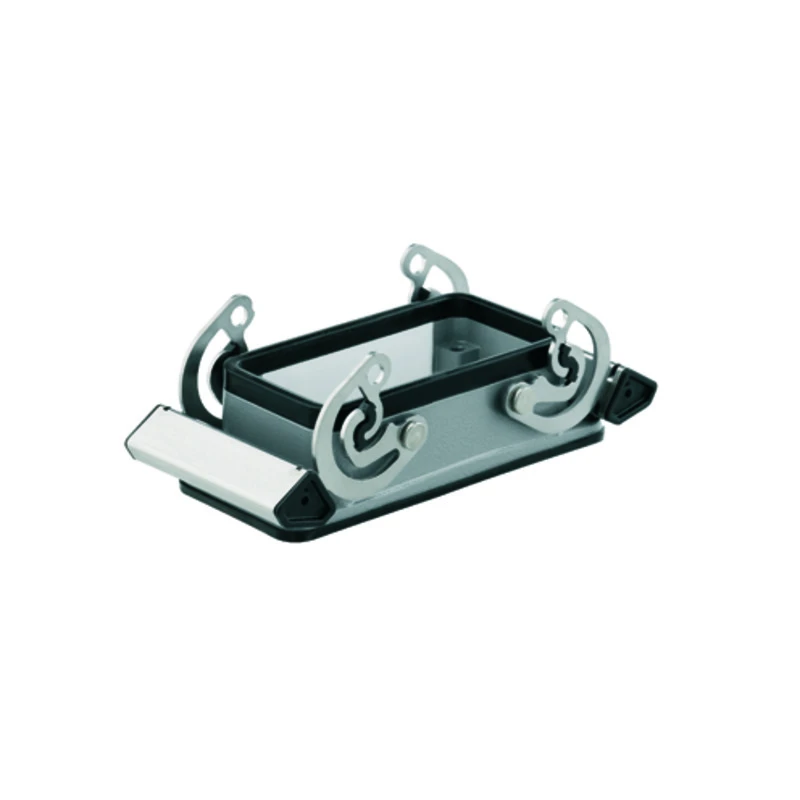

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: Side-locking clamp (lower side) · · NBR seal · · Mounting dimension: 83mm width · · Mounting Dimension: 32mm Height · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug® · · Voltage: 600V AC · · Instantaneous clip-on front mounting · · 1 block per control relay

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1205000000 Categories: , , Brand: Part Number: 2500185357

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Housing colour Grey Mounting method of the cable gland None Coating housing Powder coated Position cable feed Below Position of the shackle Base unit Degree of protection (IP), mounted IP65 Housing material Aluminium Width 115.7 mm Number of openings 1 Height 29.3 mm Depth 55 mm Operating temperature -40 – 125 °C UV resistant Yes With hinged lid No With sealing Yes · Technical Data Sheet – Click to Download
