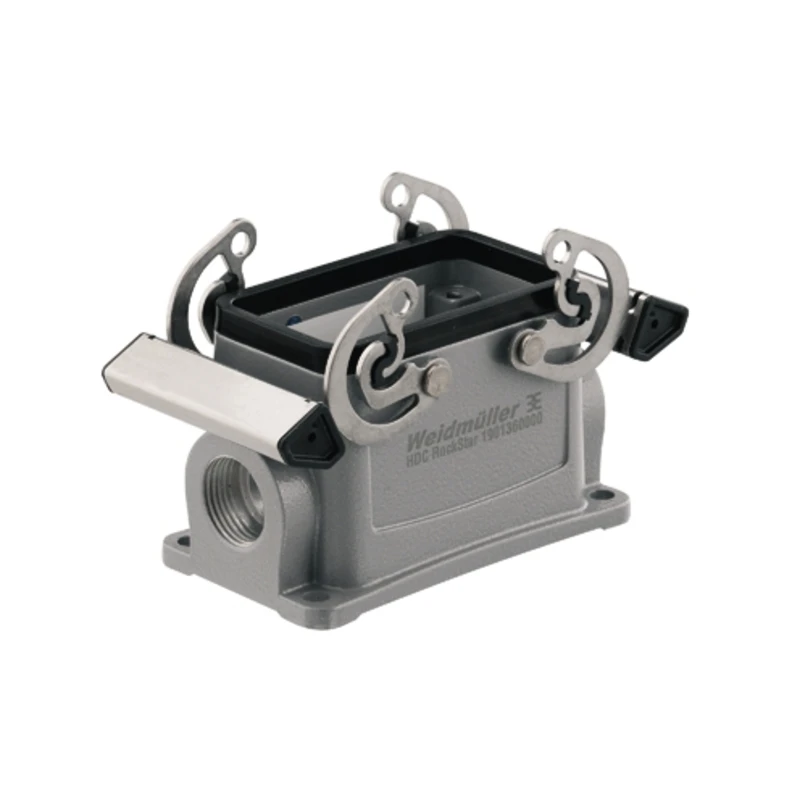

HDC 10B SBU Side Entry Base Enclosure M25 Size 4
HDC 10B SBU Side Entry Base Enclosure M25 Size 4
HDC 10B SBU Side Entry Base Enclosure M25 Size 4 - Image 2
HDC 10B SBU Side Entry Base Enclosure M25 Size 4 - Image 3

HDC 10B SBU Side Entry Base Enclosure M25 Size 4

£22.36 Incl. VAT

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: Side-locking clamp (lower side) · · 1 Cable entry on side · · M25 Internal thread · · NBR seal · · Mounting dimension: 82mm width · · Mounting Dimension: 40mm Height · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug®

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1901370000 Categories: , , Brand: Part Number: 2500629065

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Housing colour Grey Position cable feed Sideways Mounting method of the cable gland Metric Coating housing Powder coated Position of the shackle Base unit Degree of protection (IP), mounted IP65 Housing material Aluminium Height 57 mm Width 115.7 mm Number of conduit inlets 1 Depth 53.5 mm Number of openings 1 Operating temperature -40 – 125 °C UV resistant Yes With sealing Yes · Technical Data Sheet – Click to Download
