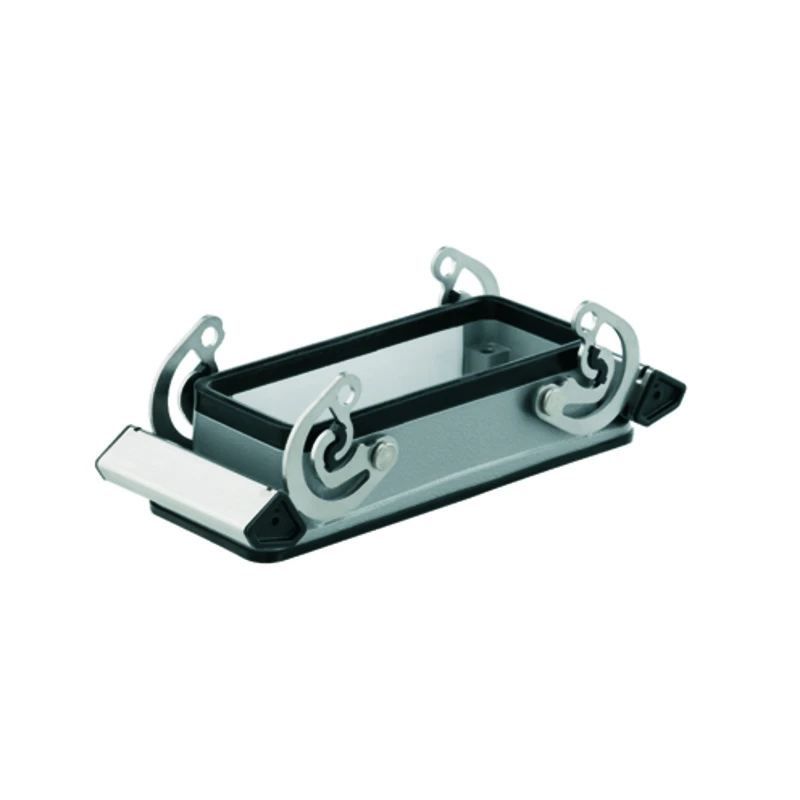

HDC 16B ABU Bulkhead Enclosure Size 6
HDC 16B ABU Bulkhead Enclosure Size 6
HDC 16B ABU Bulkhead Enclosure Size 6 - Image 2

HDC 16B ABU Bulkhead Enclosure Size 6

£15.44 Incl. VAT

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: Side-locking clamp (lower side) · · NBR seal · · Mounting dimension: 103mm width · · Mounting Dimension: 32mm Height · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Suitable for ModuPlug®

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1208600000 Categories: , , Brand: Part Number: 2500185358

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Mounting method of the cable gland None Housing colour Grey Coating housing Powder coated Position cable feed Below Degree of protection (IP), mounted IP65 Position of the shackle Base unit Housing material Aluminium Type of housing Housing extension Width 136 mm Height 29 mm Number of openings 1 Depth 55 mm Operating temperature -40 – 125 °C UV resistant Yes With hinged lid No With sealing Yes · Technical Data Sheet – Click to Download
